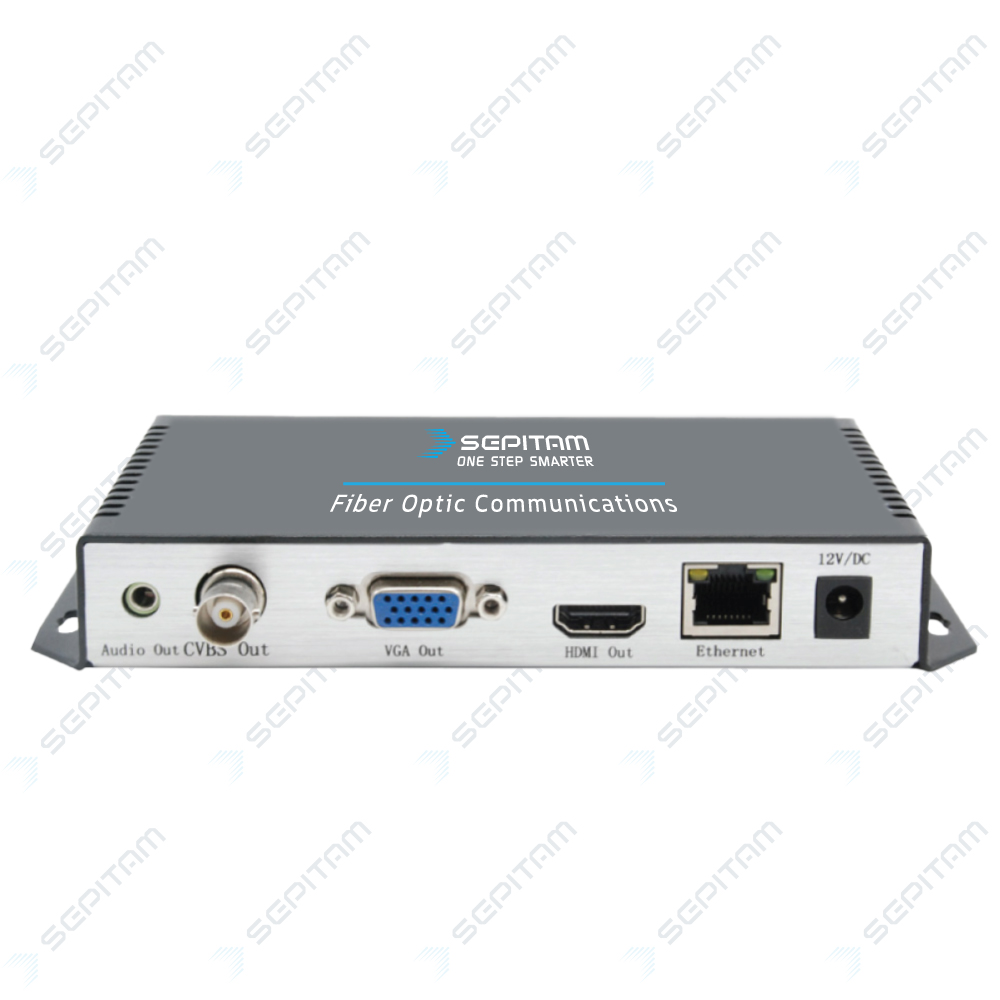

Ethernet Optic Converter With 1x100Mb RJ45 + 1x HDMI Channel

PartNumber: Sepitam-HDMI-Decoder 931

Featured Specifications More

Product : Sepitam-HDMI-Decoder 931
Input / output interface : 1x HDMI +1x 10/100Base-T RJ45
Downlink Ports : 1x 10/100Base-T RJ45
Uplink Ports : 1x HDMI
Mounting type : Wall mount | Desktop
Warranty Period : 36Months

Description

Sepitam-HDMI-Decoder 931 is a high-definition decoder is a professional high-definition AV decoder. It has a HDMI, a CVBS, a VGA output interface and a stereo audio output and it also supports H.265&H.264 decoding format. It receives TS (transport stream) from encoder, and support set the maximum output resolution is 4K(3840*2160@30HZ). This equipment also has high integration and costs low. It can be widely used in various high-definition video systems like multimedia release, digital signage, and signal issuance.

Seller:

سپیتام

Ask for quotation now:

02191082135

واحد فروش 09331431035

واحد فروش 09331438935

Price inquiry

?Need Help

.Just let us know and we will guide you

Call

02191082135

Similar products

Ethernet Optic Converter With 1x HDMI &1x HDMI Loop + 1x1G Channel

Call for price

Sepitam-Serial to Eth

Call for price

Ethernet Extender (Model: Sepitam-EX2FE-800)

Call for price

مبدل اکستندر اترنت دارای یک پورت 100Mbps RJ45و دو پورت زوج سیم (Twisted Pair) با برد انتقال 2 کیلومتر (مدل: Sepitam-EX1FE2TP)

Call for price

Ethernet Optic Converter With 1x100Mb RJ45 + 1x100Mb RJ45 & 1x BNC Channel

Call for price

Users rate: Ethernet Optic Converter With 1x100Mb RJ45 + 1x HDMI Channel

From 5

وارد حساب کاربری خود شوید

Expert review
Specifications
User comments

بررسی تخصصی

SP-DH301 is a high-definition decoder. It has 1*HDMI, 1*CVBS, 1*VGA output interface and a stereo audio output and it also supports H.265&H.264 decoding format. It receives TS (transport stream) from encoder, and support set the maximum output resolution is 4K (3840*2160@30HZ). This equipment also has high integration and costs low. It can be widely used in various high-definition video systems like multimedia release, digital signage, and signal issuance.

Description
Product	Sepitam-HDMI-Decoder 931

Environmental requirements
Operating Temperature	0̊C ~ 45 ̊C

Connection data
Input / output interface	1x HDMI +1x 10/100Base-T RJ45
Downlink Ports	1x 10/100Base-T RJ45
Uplink Ports	1x HDMI

Mechanical data
Mounting type	Wall mount, Desktop
Dimensions (WxHxD)	165x111x32mm
Weight	350g
Design / Protection class	Metal Housing/ IP30
Color	Black

Technical data
Communication Standards	Support H.265 and H.264 decoding Support 1XHDMI,1X VGA,1XCVBS and 1X audio output Support embedded RTMP server, maximum support 1Gbps concurrency Support HTTP/HTTPS/RTSP/RTMP/SRT/UDP/RTP protocol Support 9channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP LCD display device name, IP address, resolution and working status Support up to 4K (3840×2160@60hz/30hz) resolution output Support to set the cache Support 1ch, 4ch, 9ch decoding simultaneously Support boot screen customization MJPEG/JPEG Baseline decoder MPEG1 Audio Layer 2 1000M network interface uses full duplex mode Support POE power supply(optional) Support SDK, secondary development
Input Voltage	DC 12V1A
Video input and output interface	HDMI
Power consumption	<5W
Audio Interface	Decoding format: AAC MP3 Stereo: Adjustable sound volume
Support Resolution	:input 38402160 1080P60,50,30,25 1080I60,1080I30 720P60,50 576P50,480P60 12801024P60,1280800P60,1027768P60 800*600P60 and so on.Please contact us for other resolutions. :output H.265/H.264 1channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding
Input/Output signal	1x HDMI +1x 10/100Base-T RJ45

Warranty
Warranty Period	36Months

Ethernet Optic Converter With 1x100Mb RJ45 + 1x HDMI Channel

Ask for quotation now:

02191082135

واحد فروش 09331431035

واحد فروش 09331438935

Price inquiry

Product	Sepitam-HDMI-Decoder 931	Operating Temperature	0̊C ~ 45 ̊C
Input / output interface	1x HDMI +1x 10/100Base-T RJ45	Downlink Ports	1x 10/100Base-T RJ45
Uplink Ports	1x HDMI	Mounting type	Wall mount, Desktop
Dimensions (WxHxD)	165x111x32mm	Weight	350g
Communication Standards	Support H.265 and H.264 decoding Support 1XHDMI,1X VGA,1XCVBS and 1X audio output Support embedded RTMP server, maximum support 1Gbps concurrency Support HTTP/HTTPS/RTSP/RTMP/SRT/UDP/RTP protocol Support 9channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP LCD display device name, IP address, resolution and working status Support up to 4K (3840×2160@60hz/30hz) resolution output Support to set the cache Support 1ch, 4ch, 9ch decoding simultaneously Support boot screen customization MJPEG/JPEG Baseline decoder MPEG1 Audio Layer 2 1000M network interface uses full duplex mode Support POE power supply(optional) Support SDK, secondary development	Input Voltage	DC 12V1A
Video input and output interface	HDMI	Power consumption	<5W
Management		Warranty Period	36Months
Configuration Method		Audio Interface	Decoding format: AAC MP3 Stereo: Adjustable sound volume
Support Resolution	:input 38402160 1080P60,50,30,25 1080I60,1080I30 720P60,50 576P50,480P60 12801024P60,1280800P60,1027768P60 800*600P60 and so on.Please contact us for other resolutions. :output H.265/H.264 1channel 4K decoding, 4 channels 1080P decoding, 9 channels 720P decoding	Design / Protection class	Metal Housing/ IP30
Input/Output signal	1x HDMI +1x 10/100Base-T RJ45	Color	Black
