Sepitam-PI208G-DFM

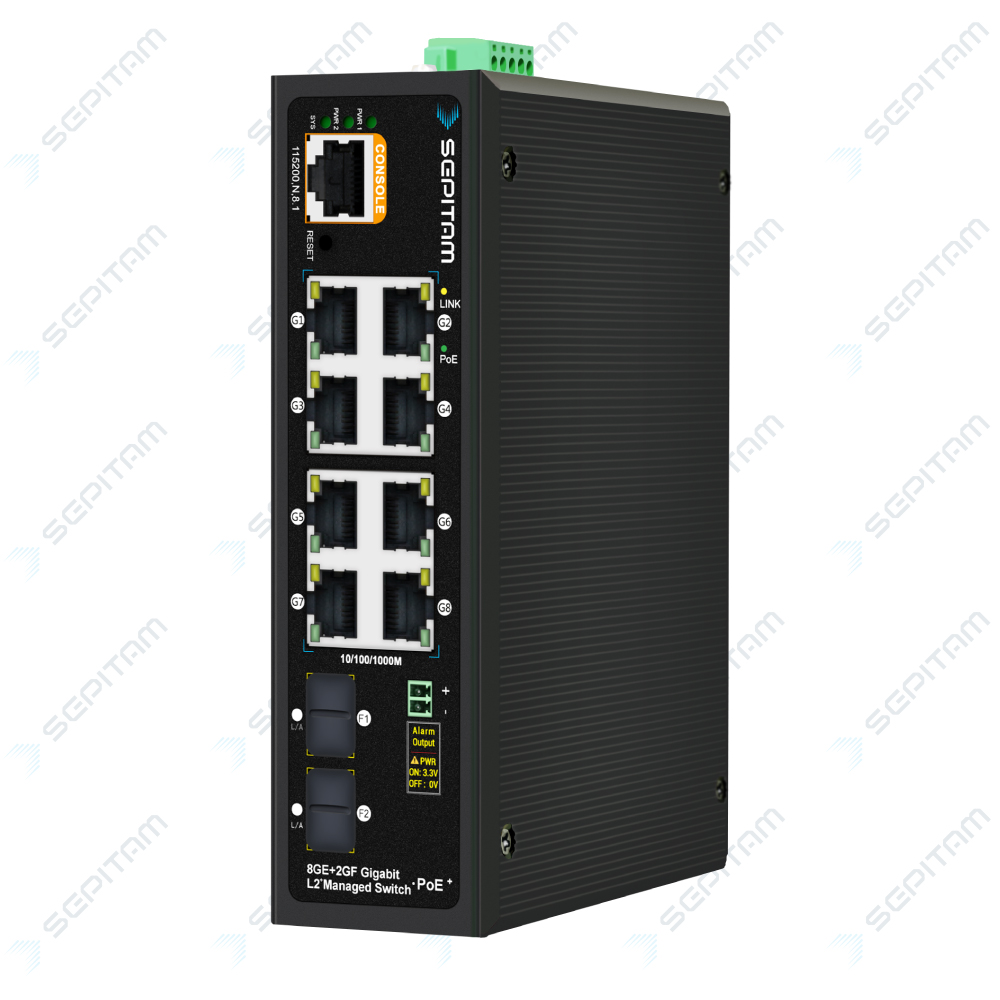

Full Gigabit 8Port Managed Industrial PoE switch, with 2xGigabit SFP Uplinks ( Model: Sepitam-PI208G-DFM )

Part Number: Sepitam-PI208G-DFM
Part Number: Sepitam-PI208G-DFM
Featured Specifications بیشتر
  • Downlink Ports : 8x10/100/1000Base-T PoE
  • Uplink Ports : 2x1000BaseX SFP
  • Management : Managed
  • product vendor icon image Seller:
    فروشگاه اینترنتی سپیتام

محصولات مشابه

امتیاز کاربران به: Full Gigabit 8Port Managed Industrial PoE switch, with 2xGigabit SFP Uplinks ( Model: Sepitam-PI208G-DFM )
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی
Full Gigabit 8Port Managed Industrial PoE switch, with 2xGigabit SFP Uplinks ( Model: Sepitam-PI208G-DFM )

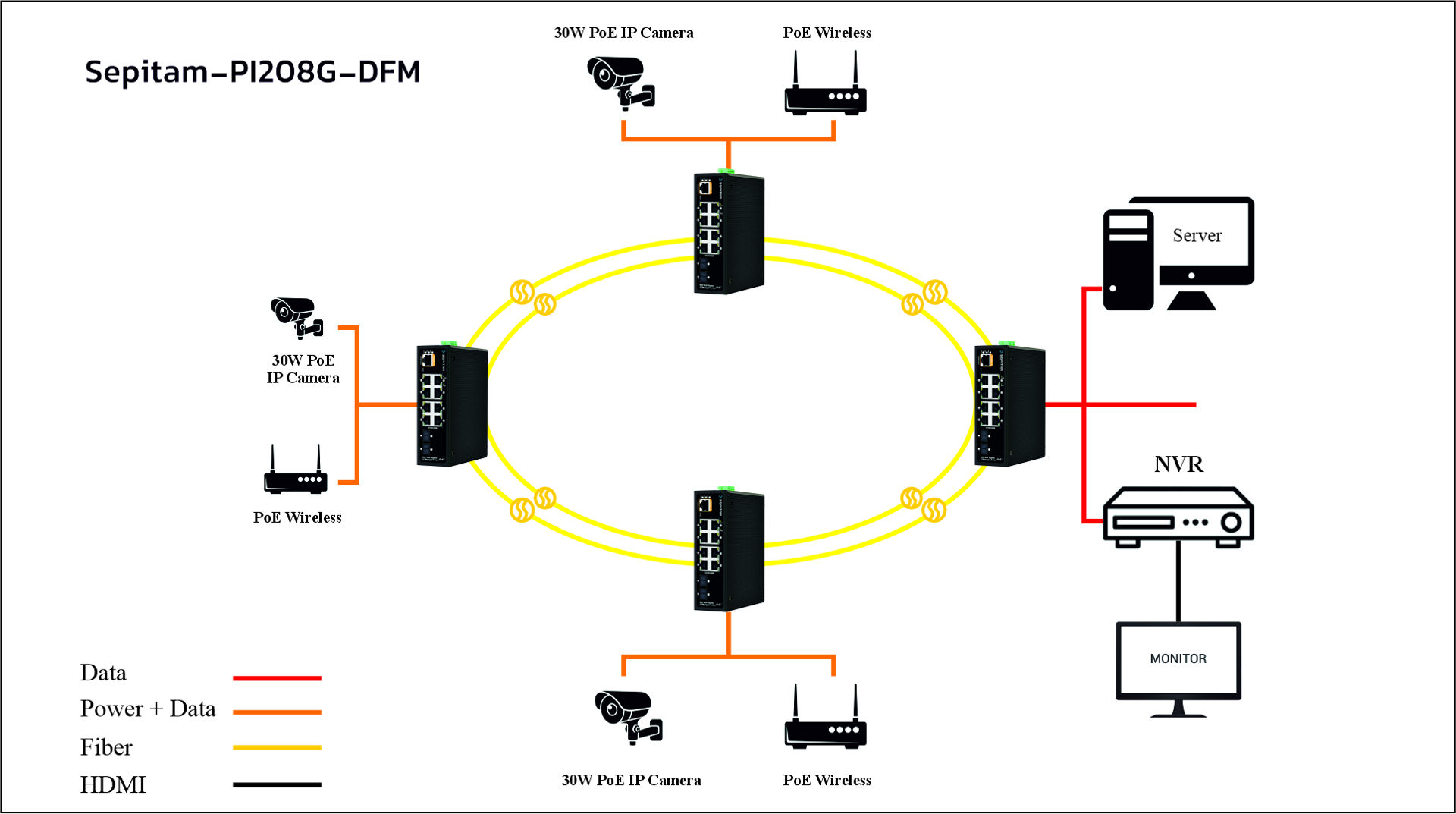

این محصول یک PoE سوئیچ 8 پورت، سری صنعتی و مدیریتی بوده که علاوه بر ارتباط بین سیستم ها و ایجاد یک شبکه واحد و مدیریت آن از طریق پروتکل های لایه +2، توان مورد نیاز دستگاه های مبتنی بر استاندارد PoE (IEEE802.3af/at) را نیز تأمین می کند. در پنل جلویی این محصول 8 پورت شبکه Rj45 با سرعت 10/100/1000Mbps و دو پورت SFP به صورت آپلینک با سرعت 10/100/1000Mbps تعبیه شده است و همچنین  دارای LED نشانگر وضعیت کارایی دستگاه می باشد و در پنل بالایی محصول نیز درگاه برق ورودی قرار گرفته که این درگاه از دو منبع به صورت همزمان پشتیبانی می کند. این دستگاه مدیریتی بوده و می توان از طریق WEB, CLI, SSH و... آن را مدیریت نمود. یکی از ویژگی های مثبت این محصول علاوه بر ظرفیت و پهنای باند بالا، تضمین حفظ داده در کلیه شرایط است. سوئیچ Sepitam-PI208G-DFM این اطمینان را به ما می دهد که در توپولوژی رینگ با استفاده از استاندارد پیشرفته ERPS (ITU-T G.8032) حفاظت از داده ها به نحوی انجام گردد که در صورت قطع یک نقطه از شبکه، داده ها ظرف کمتر ازچند میلی ثانیه احیا گردند.

This Industrial Gigabit smart L2+ PoE switch  prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. One eight Gigabit Ethernet ports and one console port it prepared any 10/100/1000 Mbps ,all ports can supply industry-standard IEEE 802.3af power for every POE standard devices. It provides the ideal combination of affordability and capabilities for entry level networking of industrial, enterprise application which demands industrial, surveillance, IP Phone, IP Camera or Wireless applications, thus helps you create a more efficient workforce.

Regards to using advanced auto-sensing algorithm the Sepitam-PI208G-DFM gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this manageable PoE Sepitam-PI208G-DFM can recognized automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™.

Sepitam-PI208G-DFM made by high quality of components were rigorous screened, have superior performance in stability, environmental adaptability. It can work normally in very cold  environment to very hot from -40oC to +80oC. The product planned in a way of better resistance and  ability to  corrosion and   electromagnetic  interference. Power input also made a suitable and reliable types of power, to get more powerful suitability to environment.





Full Gigabit 8Port Managed Industrial PoE switch, with 2xGigabit SFP Uplinks  ( Model: Sepitam-PI208G-DFM )
Full Gigabit 8Port Managed Industrial PoE switch, with 2xGigabit SFP Uplinks ( Model: Sepitam-PI208G-DFM )
Product Sepitam-PI208G-DFM PoE Enabled Ports 8x10/100/1000Base-T PoE
Switching Fabric 20Gbps Forwarding Rate 13.39Mpps@64byts
MAC Up to 4K Buffer Memory 4Mb
Communication Standards IEEE802.3: CSMA/CD
IEEE802.3i: 10Base-T
IEEE802.3u: 100Base-T
IEEE802.3ab: 1000Base-T
IEEE802.3z: 1000Base-LX
Power Budget 120W@af, 250W@at
Input Voltage DC48V 2.5A
MTBF 500,000Hours
Redundancy function ;Redundant DC power supply
STP; RSTP; ERPSv1/v2 (max. 2 rings per switch, max. 16 switches per ring, switching time < 800 ms)
Color Black
Design / Protection class Metal Housing/ IP40 Dimensions (WxHxD) 165x145x45mm
Weight 900gr Operating Temperature 40̊C ~ 80 ̊C-
Relative humidity (without condensation) 95% ~ 5% Warranty Period 60Month
Downlink Ports 8x10/100/1000Base-T PoE Uplink Ports 2x1000BaseX SFP
PoE Standards IEEE802.3 af, IEEE802.3 at Management Managed
Configuration Method WEB Software coverage product: 114 | spec: 1069
