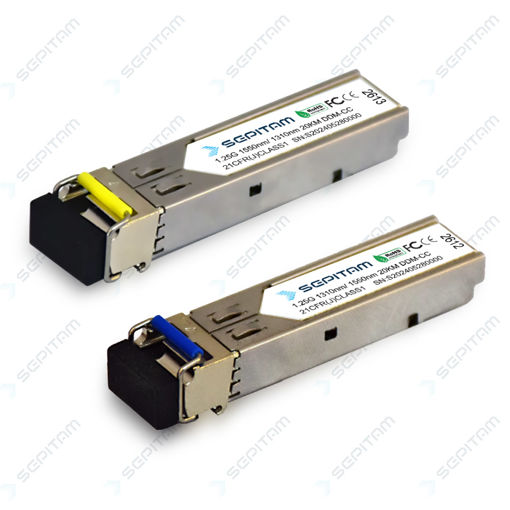

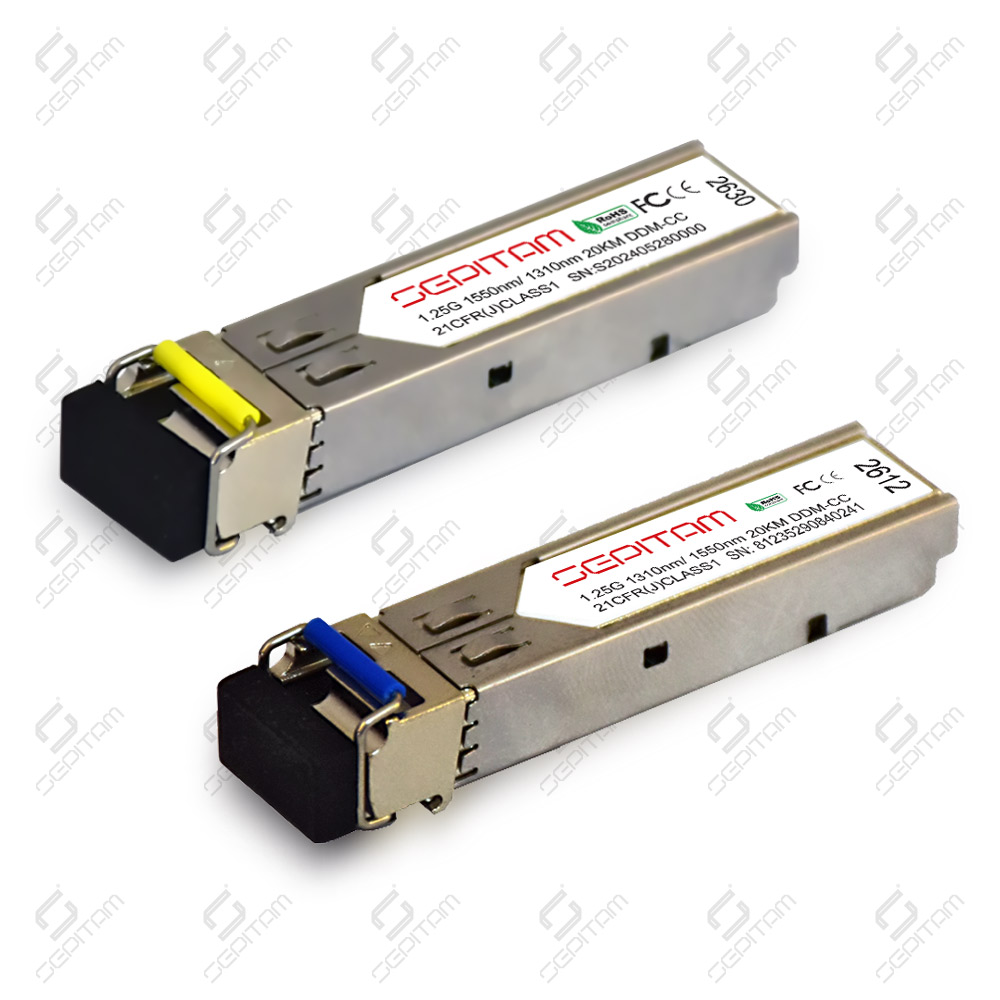

Sepitam-SFP1G-SM-SX

SFP Madule Single Mode-Simplex-20km

PartNumber: Sepitam-SFP1G-SM-SX-20Km
PartNumber: Sepitam-SFP1G-SM-SX-20Km
Featured Specifications بیشتر
  • Product : Sepitam-SFP1G-SM-SX-20Km
  • Transmission Distance : 20Km
  • Transmission Rate : 1.25Gbps
  • Warranty Period : 12Month
Description

The Sepitam-SFP1G-SM-SX-20KM transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20KM transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

 The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.



Similar products

Users rate: SFP Madule Single Mode-Simplex-20km
0
From 5
Excellent
0 (0%)
Good
0 (0%)
middle
0 (0%)
Not OK
0 (0%)
Poor
0 (0%)
  • Expert review
  • Specifications
  • User comments
بررسی تخصصی

Product Description:

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Product Sepitam-SFP1G-SM-SX-20Km Transmission Distance 20Km
Optical fiber Interface LC Simplex Transmission Rate 1.25Gbps
Communication Standards Dual data-rate of 1.25Gbps/1.063Gbps operation
1550nm DFP laser and PIN photo detector for 20km transmission
1310nm FP laser and PIN photo detector for 20km transmission
BIDI LC/UPC type pluggable optical interface
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
RoHS compliant and lead-free
Single +3.3V power supply
Support Digital Diagnostic Monitoring interface
Compliant with SFF-8472
Operating Temperature 0̊C ~ 70 ̊C
Warranty Period 12Month
