Sepitam-PI202G-DF

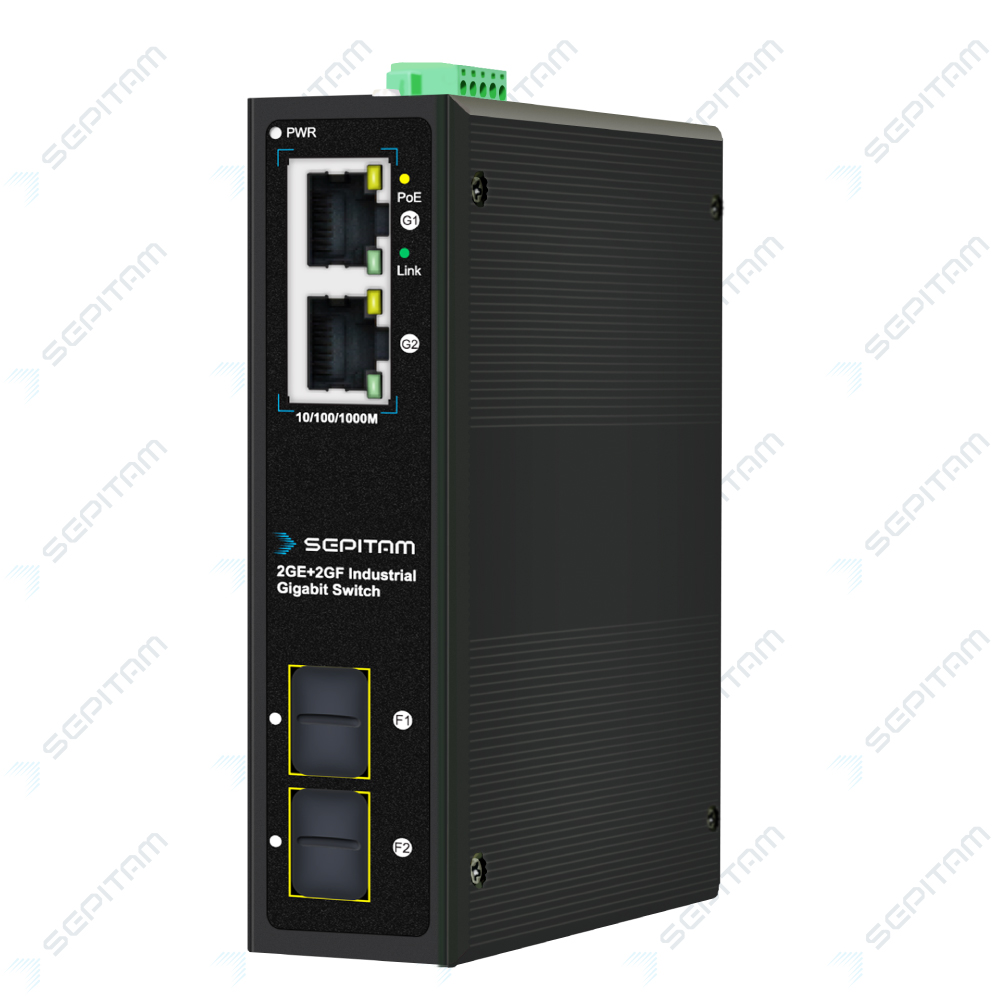

PoE سوئیچ صنعتی 2 پورت 10/100/1000Mbps و 2 پورت آپلینک 1G SFP ( مدل: Sepitam-PI202G-DF )

شناسه کالا: Sepitam-PI202G-DF
شناسه کالا: Sepitam-PI202G-DF
مشخصات برجسته بیشتر
  • Product : Sepitam-PI202G-DF
  • Downlink Ports : 2x10/100/1000Base-T PoE
  • Uplink Ports : 2x1000BaseX SFP
  • Dimensions (WxHxD) : 128x105x47mm
  • Warranty Period : 60Month
توضیحات

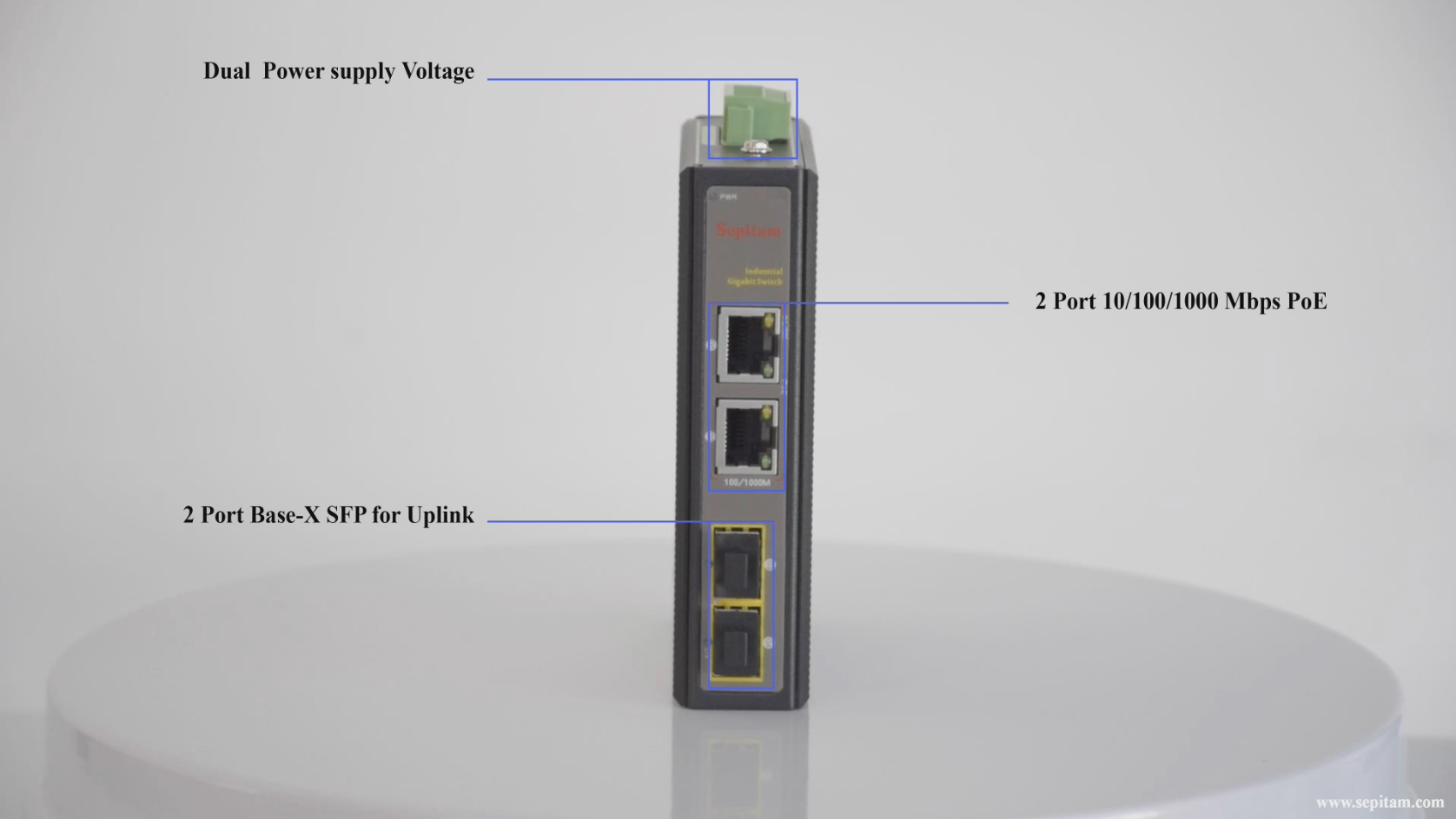

این محصول یک PoE سوئیچ 2 پورت، سری صنعتی و غیر مدیریتی بوده که علاوه بر ارتباط بین سیستم ها و ایجاد یک شبکه واحد، توان مورد نیاز دستگاه های مبتنی بر استاندارد PoE (IEEE802.3af/at) را نیز تأمین می کند. در پنل جلویی این محصول 2 پورت شبکه Rj45 با سرعت 10/100/1000Mbps و دو پورت SFP به صورت آپلینک با سرعت 10/100/1000Mbps تعبیه شده است و همچنین  دارای LED نشانگر وضعیت کارایی دستگاه می باشد و در پنل بالایی محصول نیز درگاه برق ورودی قرار گرفته که این درگاه از دو منبع به صورت همزمان پشتیبانی می کند. این دستگاه نیاز به برنامه ریزی نداشته و به صورت plug and play نصب می شود.

  • product vendor icon image فروشنده:
    سپیتام
به کمک نیاز دارید ؟
کافیست با ما در میان بگذارید تا شما را راهنمایی کنیم
تماس بگیرید

محصولات مشابه

امتیاز کاربران به: PoE سوئیچ صنعتی 2 پورت 10/100/1000Mbps و 2 پورت آپلینک 1G SFP ( مدل: Sepitam-PI202G-DF )
5
از 5
عالی
1 (100%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی

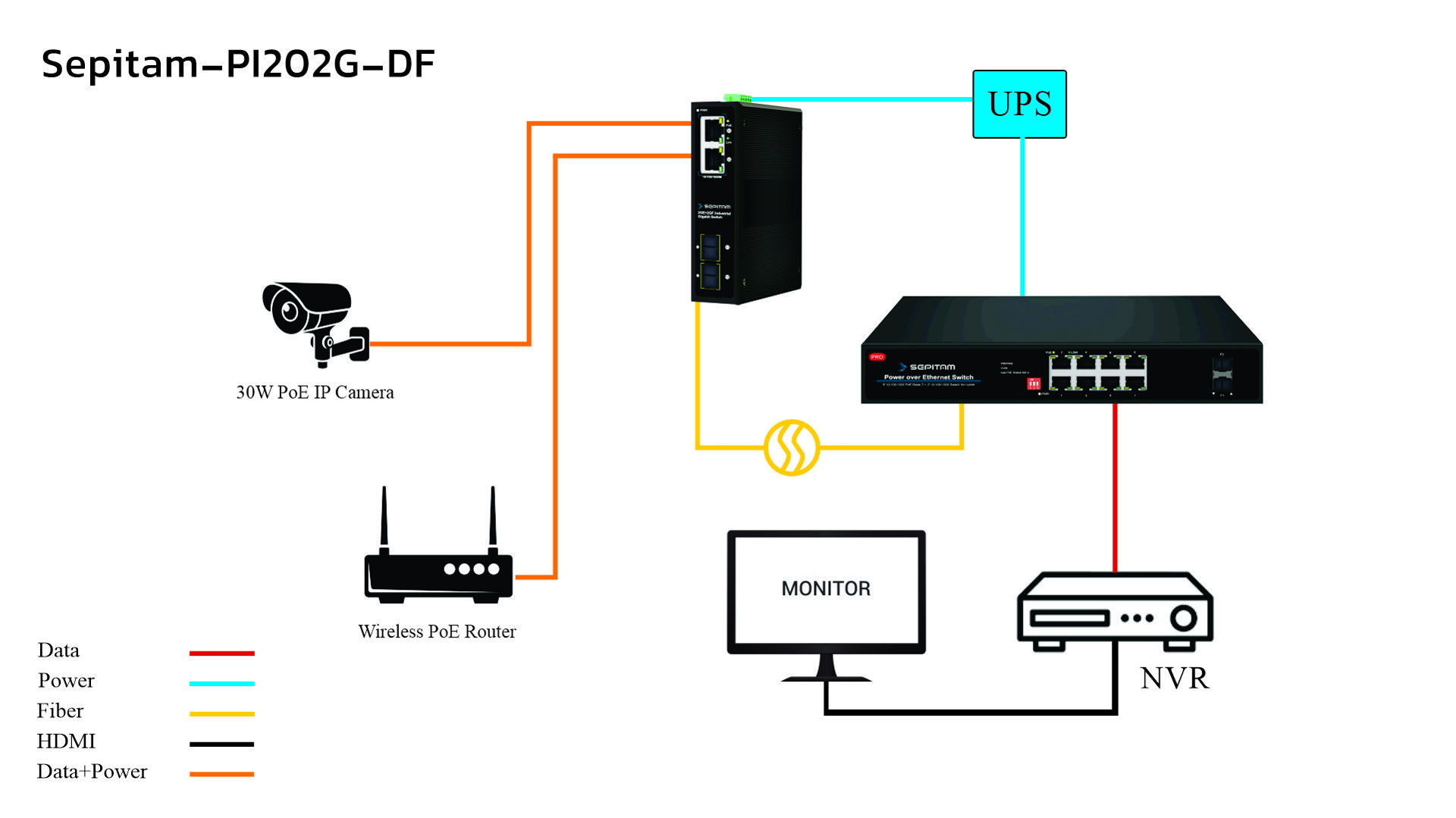

This Industrial equipment can prepare a field that power and data feed from a single point, using Power over Ethernet (PoE) over a single cable. One Two Gigabit Ethernet ports it prepared any 10/100/1000 Mbps link as industry-standard IEEE 802.3af power for every POE standard devices.This Sepitam-PI202G-DF Industrial PoE switch has DIN rail type cabin in order to using in industrial rack and physically passed all CE, RoHS , and FCC standard tests fully. Four Giga bit Power Ports and two 1000MSFP ports in order to connect to Industrial 10Base-T Twisted-pair cable or 100Base-TX Twisted-pair cable and devices such as computer, switch, hub, and server. It can provide one or two remote 1000base-FX cable interface.

Regards to using advanced auto-sensing algorithm the Sepitam-PI202G-DF gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this PoE Switch Sepitam-PI202G-DF can recognized automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™.

The utilized components in product were rigorous screened, have superior performance in stability, environmental adaptability. A real industrial shell was made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN-35 rail type installation method. Power input also chooses a suitable industry-standard types of power connector, to get more powerful resistance to environment.








PoE سوئیچ صنعتی 2 پورت 10/100/1000Mbps و 2 پورت آپلینک 1G SFP ( مدل: Sepitam-PI202G-DF )
PoE سوئیچ صنعتی 2 پورت 10/100/1000Mbps و 2 پورت آپلینک 1G SFP ( مدل: Sepitam-PI202G-DF )
Product Sepitam-PI202G-DF Downlink Ports 2x10/100/1000Base-T PoE
Uplink Ports 2x1000BaseX SFP PoE Enabled Ports 2x10/100/1000Base-T PoE
Switching Fabric 8Gbps Forwarding Rate 4.46Mpps@64byts
MAC 8K Buffer Memory 1Mb
Communication Standards IEEE802.3: CSMA/CD
IEEE802.3i: 10Base-T
IEEE802.3u: 100Base-T
IEEE802.3ab: 1000Base-T
IEEE802.3z: 1000Base-LX
Design / Protection class Metal Housing/ IP40
Management Unmanaged Redundancy function Redundant DC power supply
PoE Standards IEEE802.3 af Power Budget 60W
MTBF 500,000Hours Input Voltage DC48V1.25A
Dimensions (WxHxD) 128x105x47mm Mounting type Rail mount
Operating Temperature 40ͦC ~ 75 ͦC-
Relative humidity (without condensation) 5% ~ 95%
Warranty Period 60Month
