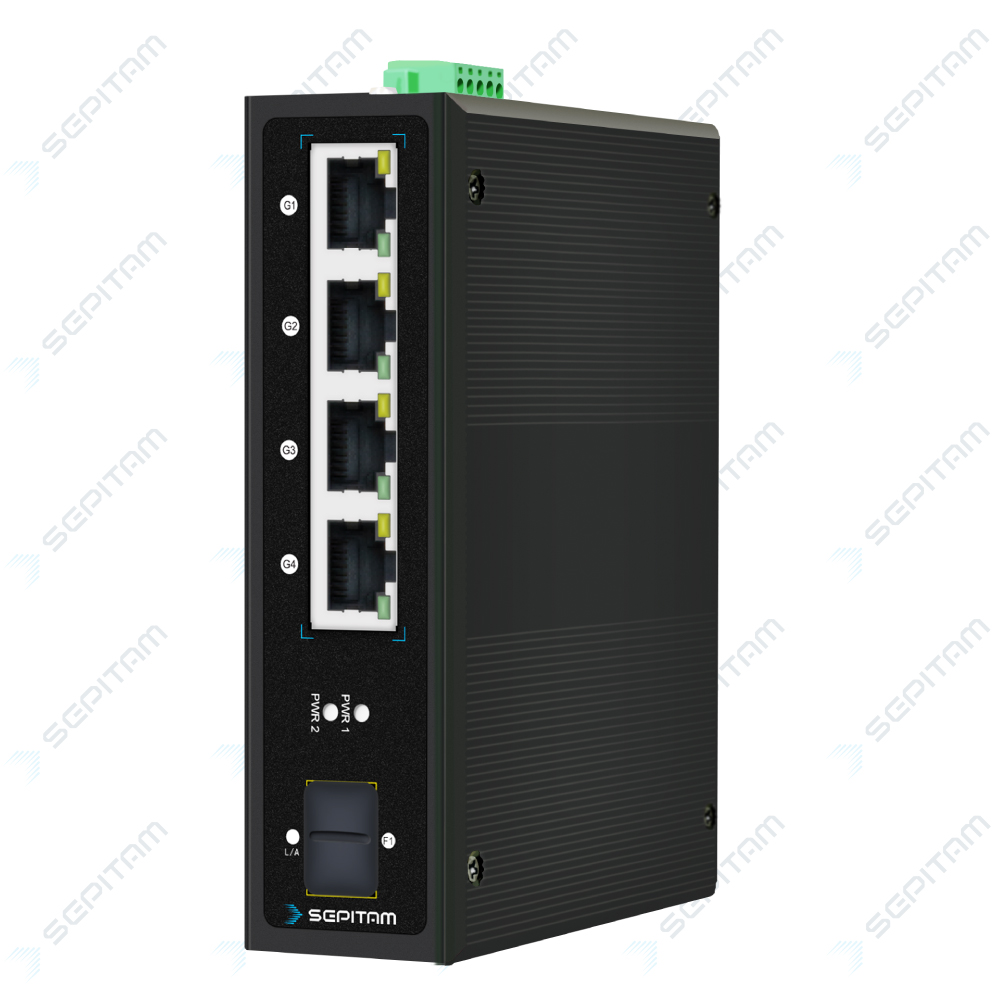

Industrial Unmanaged Switch With 4*1G PoE + 1*1G SFP Ports

Part Number: Sepitam-PI104G-F-bt
Part Number: Sepitam-PI104G-F-bt
Featured Specifications بیشتر
  • Product : Sepitam-PI104G-F-bt
  • Downlink Ports : 4x10/100/1000Base-T PoE
  • Uplink Ports : 1x1000BaseX SFP
  • Warranty Period : 60Month
  • Dimensions (WxHxD) : 118x86x39mm
توضیحات

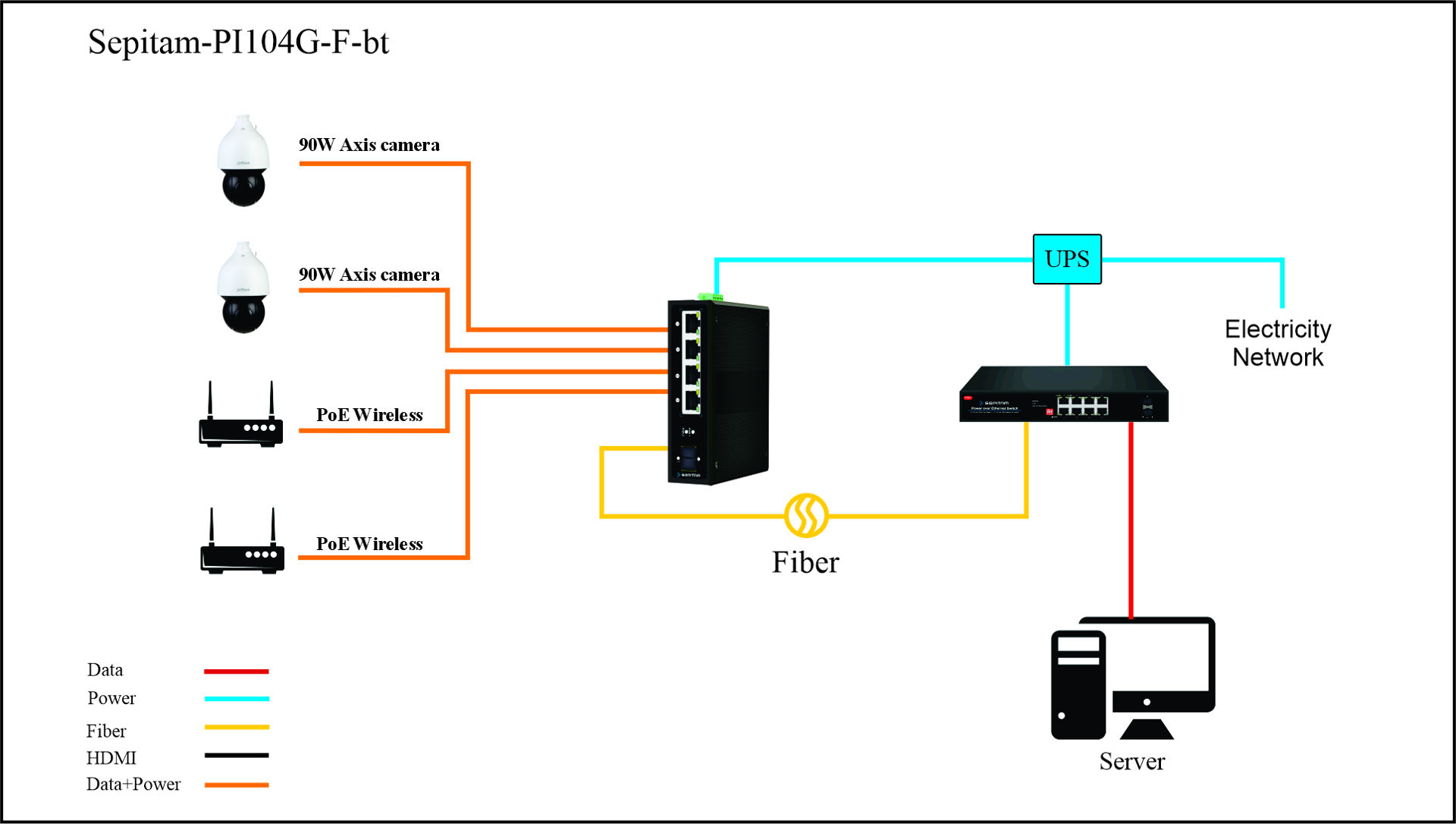

The Sepitam-PI104G-F-90 is a 10/100/1000M 90W industrial PoE switch. It has 4*10/100/1000M PoE ports and 1*100/1000M SFP port, Ports 1-4 can support IEEE 802.3af/at/bt PoE standard, single port max—PoE power up to 90W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. Through a network cable, it can supply power to PoE terminal equipment such as wireless AP, web cameras, VoIP phones, and industrial sensors. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.



  • product vendor icon image Seller:
    سپیتام
به کمک نیاز دارید ؟
کافیست با ما در میان بگذارید تا شما را راهنمایی کنیم
تماس بگیرید

محصولات مشابه

امتیاز کاربران به: Industrial Unmanaged Switch With 4*1G PoE + 1*1G SFP Ports
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی

The Sepitam-PI104G-F-90 is a 10/100/1000M 90W industrial PoE switch. It has 4*10/100/1000M PoE ports and 1*100/1000M SFP port, Ports 1-4 can support IEEE 802.3af/at/bt PoE standard, single port maxPoE power up to 90W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. Through a network cable, it can supply power to PoE terminal equipment such as wireless AP, web cameras, VoIP phones, and industrial sensors. It also meets the network environment that needs a highdensity PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.

Product Sepitam-PI104G-F-bt Downlink Ports 4x10/100/1000Base-T PoE
Uplink Ports 1x1000BaseX SFP PoE Enabled Ports 4x10/100/1000Base-TX 90W 802.3bt PoE
Switching Fabric 10Gbps Forwarding Rate 7.44Mpps
MAC 4K Buffer Memory 1M
Communication Standards IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x
Design / Protection class Metal Housing/ IP40
Color Black Warranty Period 60Month
Management Unmanaged Redundancy function Redundant DC power supply
PoE Standards IEEE802.3 at, IEEE802.3 af, IEEE802.3 bt Power Budget 90W; IEEE802.3af/at/bt
MTBF 100000 hours Input Voltage 48-57VDC; 6 PIN industrial phoenix terminal, anti-reverse protection.
Dimensions (WxHxD) 118x86x39mm Weight 880gr
Mounting type Rail mount Operating Temperature 40°C ~ 75°C-
Relative humidity (without condensation) 95% ~ 5%
