Sepitam provides a thorough, and complete series of One Port Media conversion solutions for flexible network extensions.

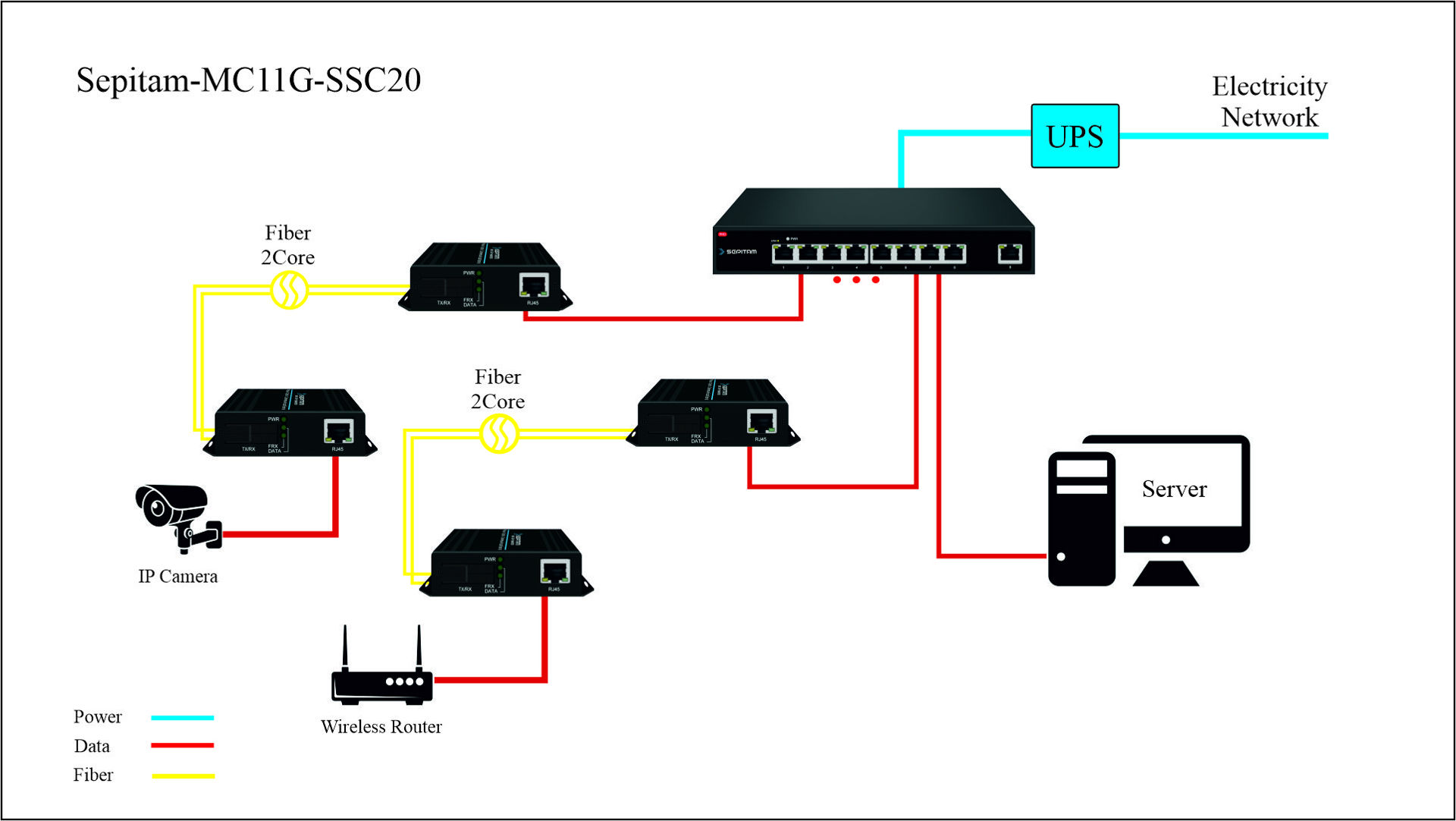

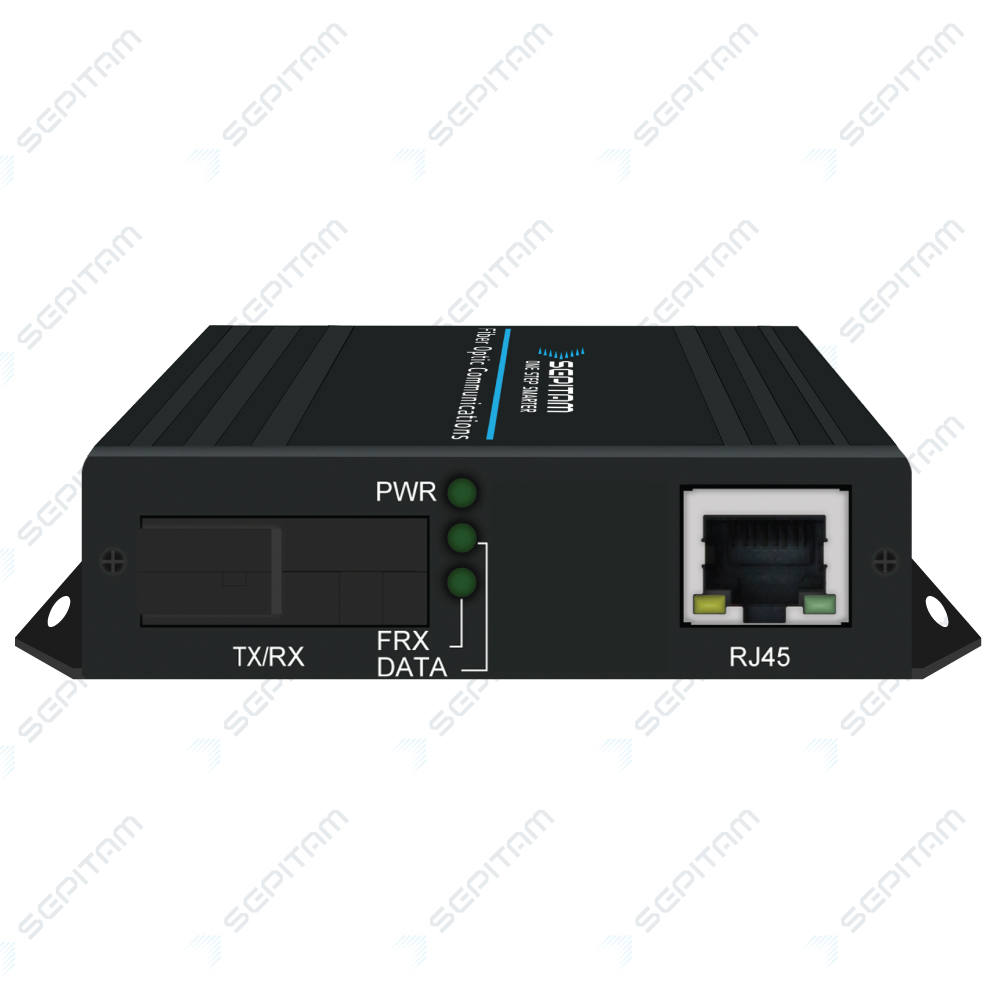

The Sepitam-MC11G-SSC20 media converter is able to convert 10/100/1000 Mbps network signals between Shielded & Unshielded Twisted Pair (Cat 5 or 6 network cabling) .This device can be used between 1000Base-TX cable and 1000Base-FX fiber optic based networks. This develops an extension of networks over a long range in single-mode fiber-optic cabling, send the Ethernet signals up to 20km. This device utilizes just one core in order to transmit and receive the information on fiber optic cable.

Features:
• Stand-alone type
• Memory Cache size is more than 500KB, address table size is 4KB
• Hold up all IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
Supports 100Base-FX fiber media transition
• Auto negotiation function Supports full duplex flow control or half duplex backpressure flow control
Both ends can utilize different speed (10/100/1000 Mbps)
• Supports automatic cross connection in UTP Ethernet port
Good compatibility and high reliability optical connector
