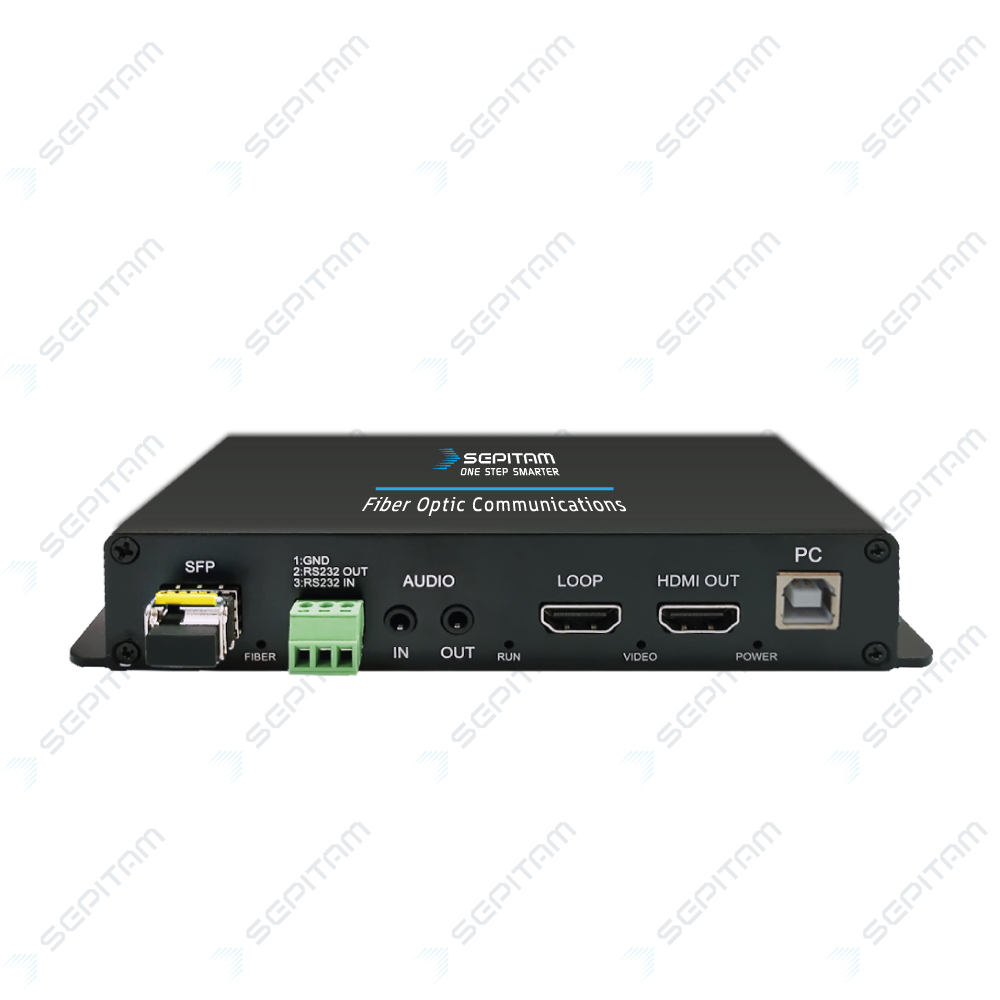

The Sepitam-1HD2U1bD1bA-XF-T/R optical converter is composed of transmitter and receiver. The audio, usb, video and data output from the computer host (HD video signal source, HD DVD/DVR and other equipment) are extended to the remote user through 1 core optical fiber. Listen to the image and sound of the computer host in real time on the remote end and control the host at the transmitter.
| Product | Sepitam-1HD2U1bD1bA-XF-T/R | Color | |
| Support Resolution | 4096x2160x30Hz backward compatible | Audio Interface | 3.5mm audio jack female |
| Optical fiber Interface | +1x 10GBase-X SFP |
Transmission band width / rate | 10Gbps |
| USB interface | 1x USB Female Type B Connector 2x USB Female Type A Connector |
signal type | Keyboard and mouse |
| Data Interface | 1x bidirectional RS232 | Type of data | RS232 |
| Transmission Distance | Up to 20KM | Wavelength | 1310nm, 1550nm |
| Uplink Ports | +1x10GBaseX SFP | Input / output interface | 1x HDMI +1x HDMI Loop Back |
| Communication Standards | 4096x2160x30Hz backward compatible | Video input and output interface | HDMI |
| Management | Unmanaged | Input Voltage | DC 12V1A |
| Dimensions (WxHxD) | 167x110x28mm | Mounting type | Wall mount, Stand Alone, Desktop |
| Operating Temperature | 20̊C ~ 70 ̊C- |
Relative humidity (without condensation) | 95% ~ 0% |
| Warranty Period | 36Month |
