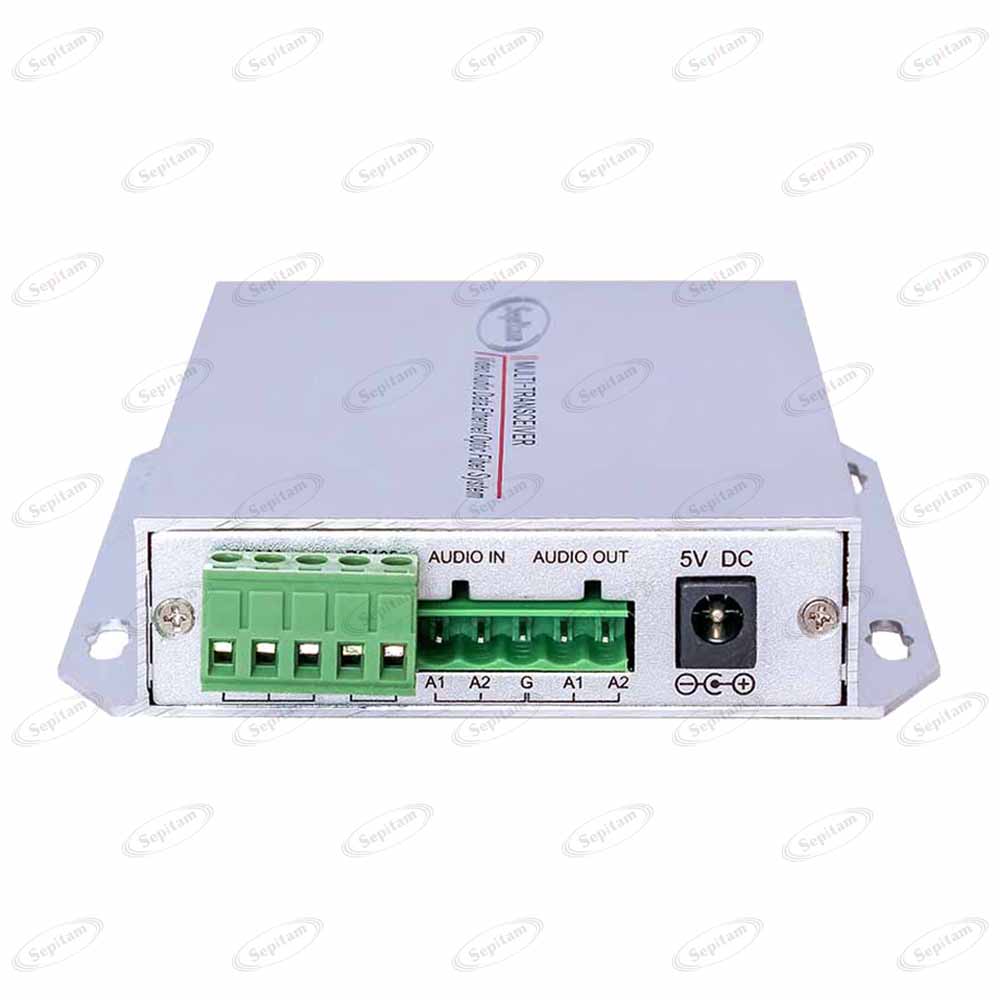

The One Channel Analog Video and One channel reverse bidirectional Data of our products, use advanced analog and digital technologies for pursuing high performance bidirectional data transmission over fiber optic. The transceiver can send signals more than 100 kilometers on fiber.
This link work properly in critical (very high and too low) temperature environments and work for years without any degradation in expected quality.
This equipment is fully transparent from front-end video device perspective. Just one fiber core is used to transmit all mentioned signals which can be any kind of fiber cables. The equipment also adopt non-compressed analog (video composite) signal in PAL or NTSC mode.
This Optical Transceiver is easily monitored by virtue of LED indication of working status and with out any electrical or optical regulation on site.
This product is released in standalone and rack-mount(2U/4U) packages.
|Downlink Ports||1xVideo BNC connector +1x Bidirectional Data+1xAudio + 1x FXO/FXS + 1x 10/100 Base-T RJ45|
|Uplink Ports||1x1000Base FC|
|Communication Standards||Compatible with NTSC, PAL, and SECAM video signals
Sampling rate up to 20MSPS and uncompressed video transmission (NRZ method)
|Input Voltage||DC5V 2A|
|Video input and output interface||1x BNC connector|
|Design / Protection class||Metal Housing/ IP30|
|Mounting type||Wall mount, Stand Alone, Desktop|
|Operating Temperature||20°C ~ 75°C-|
|Relative humidity (without condensation)||0% ~ 95%|
