Sepitam-PI204G-DF-60W

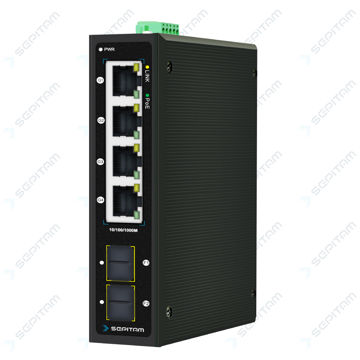

Full Gigabit 4Port Unmanaged Industrial PoE switch, with 2xGigabit SFP Uplinks, Up to 60W PoE Output ( Model: Sepitam-PI204G-DF-60W )

Part Number: Sepitam-PI204G-DF-60W
Part Number: Sepitam-PI204G-DF-60W
Featured Specifications بیشتر
  • Downlink Ports : 4x10/100/1000Base-T PoE
  • Uplink Ports : 2x1000BaseX SFP
  • Management : Unmanaged
  • product vendor icon image Seller:
    فروشگاه اینترنتی سپیتام

محصولات مشابه

امتیاز کاربران به: Full Gigabit 4Port Unmanaged Industrial PoE switch, with 2xGigabit SFP Uplinks, Up to 60W PoE Output ( Model: Sepitam-PI204G-DF-60W )
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی
Full Gigabit 4Port Unmanaged Industrial PoE switch, with 2xGigabit SFP Uplinks, Up to 60W PoE Output ( Model: Sepitam-PI204G-DF-60W )

این محصول یک POE سوئیچ 4 پورت، سری صنعتی و غیر مدیریتی بوده که قابلیت ارائه توان فوق العاده بالای 60 وات به ازای هر پورت را دارا می باشد. این محصول با پشتیبانی از استاندارد های IEEE802.3at ,IEEE802.3af تا حداکثر 60 وات را به ازای هر پورت پشتیبانی می کند. این محصول با استفاده از الگوریتم های پیشرفته به ما تضمین می دهد که توان را به صورت کاملا هوشمند تنها به دستگاه هایی که از استاندارد POE پشتیبانی می کنند مانند انواع دوربین های Out door تحویل دهد.



The Sepitam-PI204G-DF-60W is a 60W gigabit industrial UPoE fiber switch. It has 4*10/100/1000M UPOE ports and 1*1000M uplink SFP fiber slot port. Port 1-4 can support the super high power 60W UPOE output, backward compatible with the IEEE 802.3af/at PoE standard. Single-port PoE power is 60W, and the maximum PoE output power less than 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, Ip camera, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.



Full Gigabit 4Port Unmanaged Industrial PoE switch, with 2xGigabit SFP Uplinks, Up to 60W PoE Output  ( Model: Sepitam-PI204G-DF-60W )
Full Gigabit 4Port Unmanaged Industrial PoE switch, with 2xGigabit SFP Uplinks, Up to 60W PoE Output ( Model: Sepitam-PI204G-DF-60W )
Product Sepitam-PI204G-DF-60W PoE Enabled Ports 4x10/100/1000Base-T PoE
Switching Fabric 12Gbps Forwarding Rate 7.44Mpps@64byte
MAC 2K Buffer Memory 2Mb
Communication Standards IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x
Power Budget 250W
Input Voltage 48-57VDC MTBF 500,000Hours
Redundancy function Redundant DC power supply Design / Protection class Metal Housing/ IP40
Color Black PoE Standards IEEE802.3 af
Mounting type Rail mount Dimensions (WxHxD) 128x105x47mm
Weight 880gr Operating Temperature 40°C ~ 75°C-
Relative humidity (without condensation) 95% ~ 5% Warranty Period 60Month
Downlink Ports 4x10/100/1000Base-T PoE Uplink Ports 2x1000BaseX SFP
Management Unmanaged
