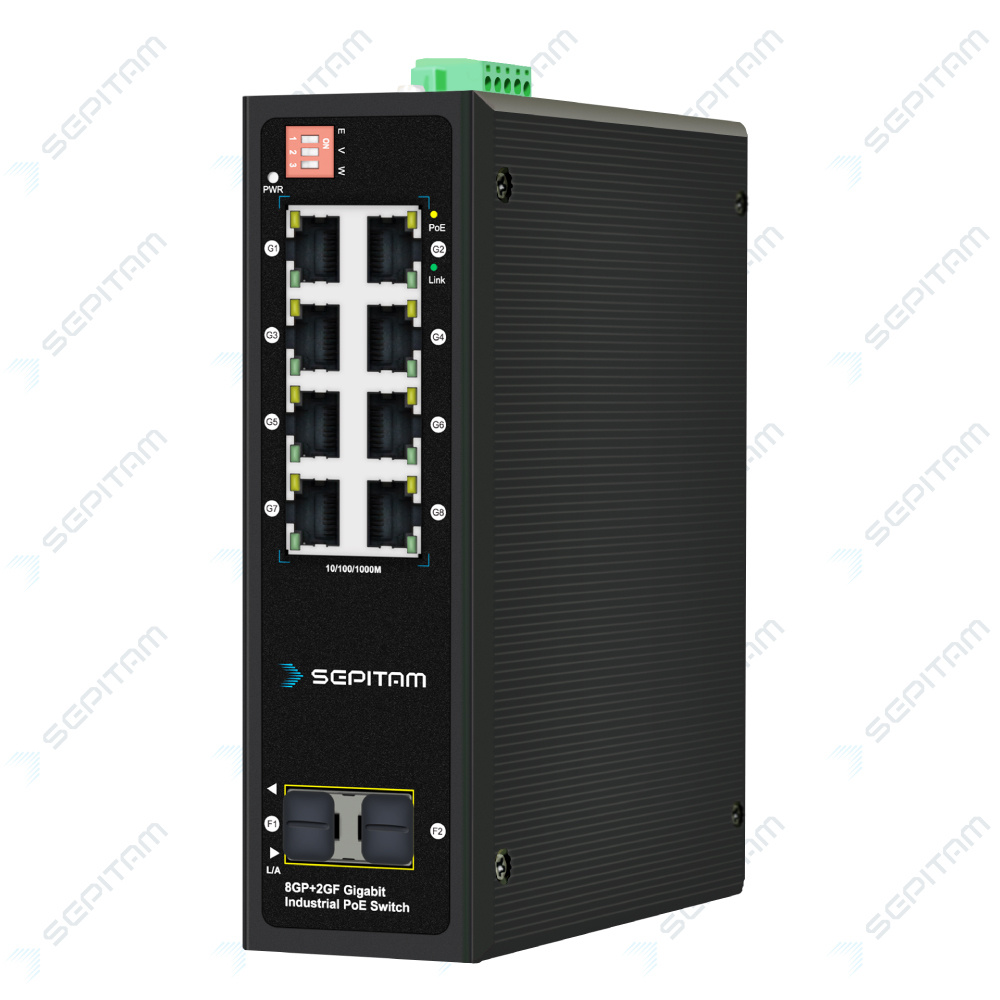

( Model: Sepitam-PI208G-DF ) Unmanaged industrial PoE switch with eight 1Gbps PoE RJ45 ports and two 1Gbps SFP ports

PartNumber: Sepitam-PI208G-DF
PartNumber: Sepitam-PI208G-DF
Featured Specifications بیشتر
  • Product : Sepitam-PI208G-DF
  • Downlink Ports : 8x10/100/1000Base-T PoE
  • Uplink Ports : 2x100/1000Base-X SFP
  • Management : Unmanaged
  • Warranty Period : 60Month
Description

The Sepitam-PI204G-DF industrial PoE switch is an unmanaged device featuring 8 PoE RJ45 ports at 1Gbps and tow 1Gbps SFP uplink port, supporting IEEE 802.3af/at standards. With a power output of 30 watts for each PoE port , this switch can supply power to devices such as IP cameras, VoIP phones, and wireless access points through the network cable. Its plug-and-play design allows easy installation and stable performance, making it suitable for industrial environments that require robust communication networks with high PoE density. The device operates reliably within temperatures ranging from -40°C to 75°C and relative humidity of 5% to 95% non-condensing, designed for use in various industries with harsh industrial conditions. By providing both power and data to network equipment in these industries, this switch enables stable and efficient communications

Similar products

Users rate: ( Model: Sepitam-PI208G-DF ) Unmanaged industrial PoE switch with eight 1Gbps PoE RJ45 ports and two 1Gbps SFP ports
0
From 5
Excellent
0 (0%)
Good
0 (0%)
middle
0 (0%)
Not OK
0 (0%)
Poor
0 (0%)
  • Expert review
  • Specifications
  • User comments
بررسی تخصصی

This industrial switch features two fiber optic uplinks and supports PoE functionality. It includes 8 PoE RJ45 ports with speeds of 1Gbps and 2 fiber optic (SFP) ports at 1Gbps. PoE ports support the IEEE 802.3af/at standards for PoE devices, providing up to 30W per port

The switch can supply power to various PoE devices, which is especially useful for installing IP cameras, VoIP phones, and wireless access points that require power. Since both power and data are transmitted over a single network cable, the need for additional wiring to supply power is reduced. Thus, it can power PoE devices such as wireless access points and IP cameras, meeting the needs of networks requiring centralized power supply

This switch supports VLAN, PoE Extend, and Watchdog features. PoE Extend allows the device to supply power up to 300 meters to PoE devices by extending the reach. The Watchdog feature automatically restarts a camera if its video feed freezes, restoring normal streaming. Enabling VLAN allows the switch to isolate downlink ports from each other so that downlink ports only communicate with uplink ports, which enhances network security if needed

Designed with a metal casing and an IP40 protection rating, this switch is resistant to dust and harsh environmental conditions. Its operating temperature ranges from -40°C to +75°C, making it suitable for use in tough industrial environments to create a stable, reliable, and cost-effective network

( Model: Sepitam-PI208G-DF ) Unmanaged industrial PoE switch with eight 1Gbps PoE RJ45 ports and two 1Gbps SFP ports
( Model: Sepitam-PI208G-DF ) Unmanaged industrial PoE switch with eight 1Gbps PoE RJ45 ports and two 1Gbps SFP ports
Product Sepitam-PI208G-DF Dimensions (WxHxD) 145x134.5x47mm
Weight 900gr Operating Temperature 40̊C ~ 75 ̊C-
Downlink Ports 8x10/100/1000Base-T PoE Relative humidity (without condensation) 95% ~ 5%
Uplink Ports 2x100/1000Base-X SFP PoE Enabled Ports 8x10/100/1000Base-T PoE
Switching Fabric 20Gbps Forwarding Rate 14.88Mpps@64byte
MAC 8K Buffer Memory 2Mb
Communication Standards IEEE802.3 10BASE-T;IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3x
Management Unmanaged
Design / Protection class Metal Housing/ IP40 Warranty Period 60Month
Redundancy function Redundant DC power supply PoE Standards IEEE802.3 af, IEEE802.3 at
Power Budget 60W@af, 120W@at MTBF 500,000Hours
Input Voltage DC48V1.25A Mounting type Rail mount
