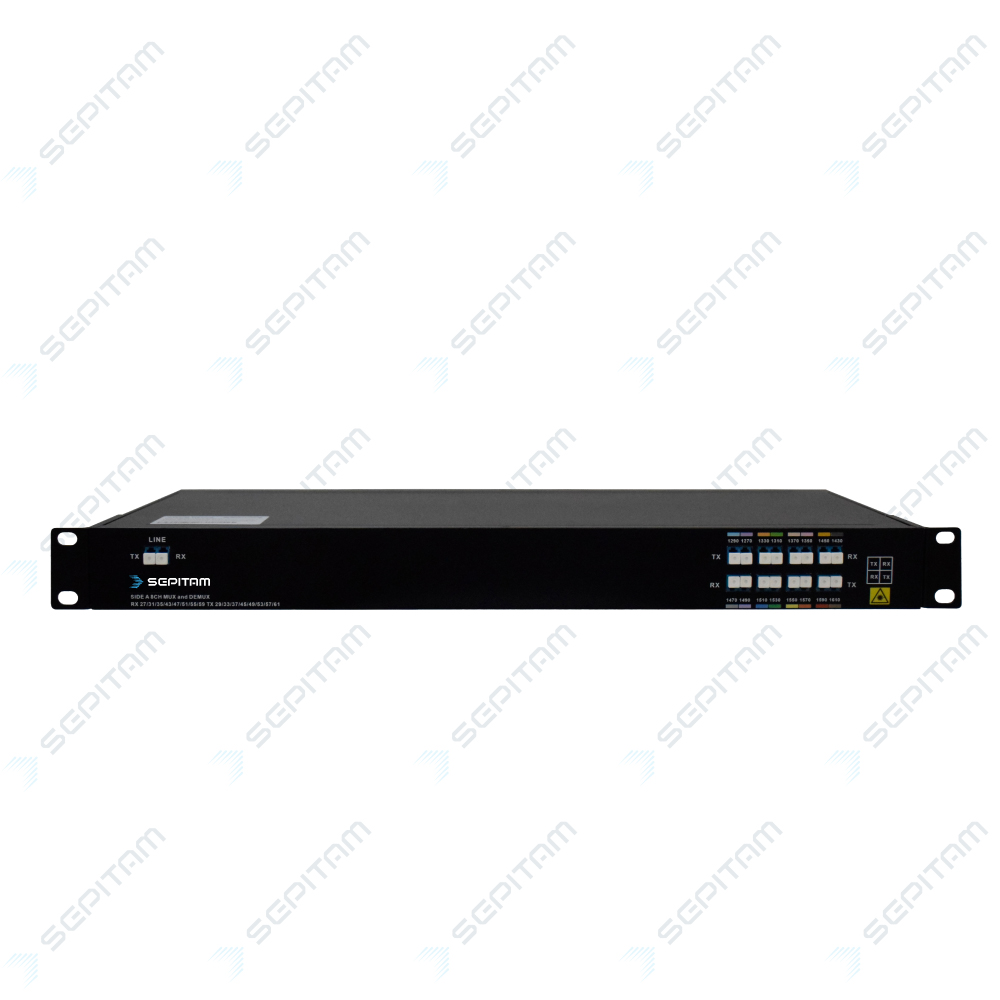

مالتی پلکسر DWDM-OADM با 8 کانال با طول موج (1554.13nm~1548.51nm) ( مدل: Sepitam-DWDM-OADM )

The Dual Fiber 8CH C29-C36 with 1310nm Port DWDM-OADM is designed by Sepitam, drop and add wavelength are from C29 to C36(1554.13nm~1548.51nm) and 1310nm,(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

The 8ch DWDM-OADM port is totally passive DWDM device, and support drop 8 channels business and add 8 channels in business in two fibers. The loss of The waves to west or east is ＜2.7dB, line loss of west to east (or east to west) is ＜5.4dB.

Support drop and add 8channel DWDM and 1channel 1310nm business transmission in dual fiber. works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
