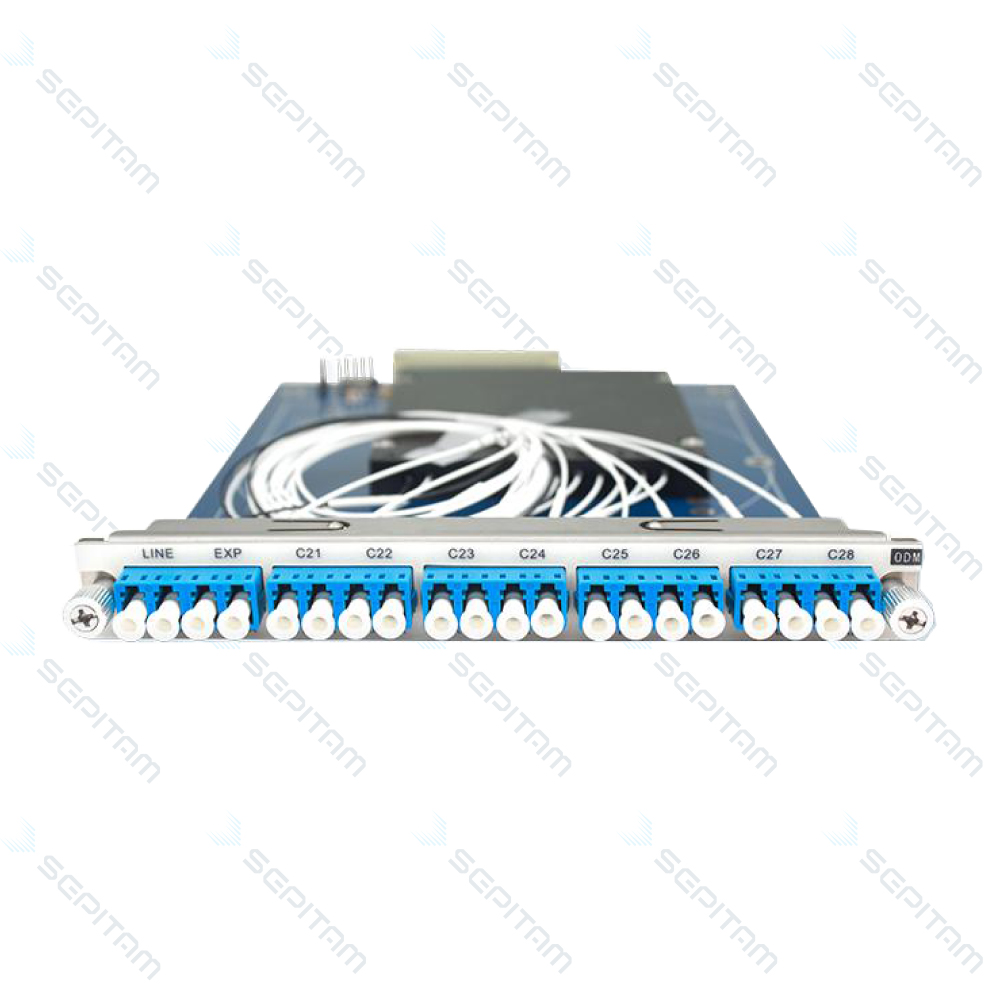

| Product | Sepitam-DWDM8-DX-2160-C |
|---|
| Operating Temperature | 10C° ~ +50°C- |
|---|---|
| Relative humidity (without condensation) | 95% ~ 5% |
| Storage Temperature | 40C° ~ +80°C- |
| Wavelength Range | CWDM:1271~1611nm,DWDM:C-Band（100GHZ or 50GHZ） |
|---|---|
| Passband Width | CWDM:±6.5nm DWDM:0.1nm |
| Channel Spacing | CWDM: 20nm,DWDM: 0.8nm/0.6nm/0.4nm |
| Wavelength | ,CWDM： 1271~1611nm |
| Insertion Loss | 4CH: <1.0dB, 6CH:<2.0dB, 8CH: <2.5dB 12CH: <2.8dB,16CH: <3.2dB,40CH: <6dB 48CH: <6dB, 80CH: <6dB, 96CH: <7dB |
| Dimensions (WxHxD) | 156x20x225mm |
|---|
| Warranty Period | 36Months |
|---|
