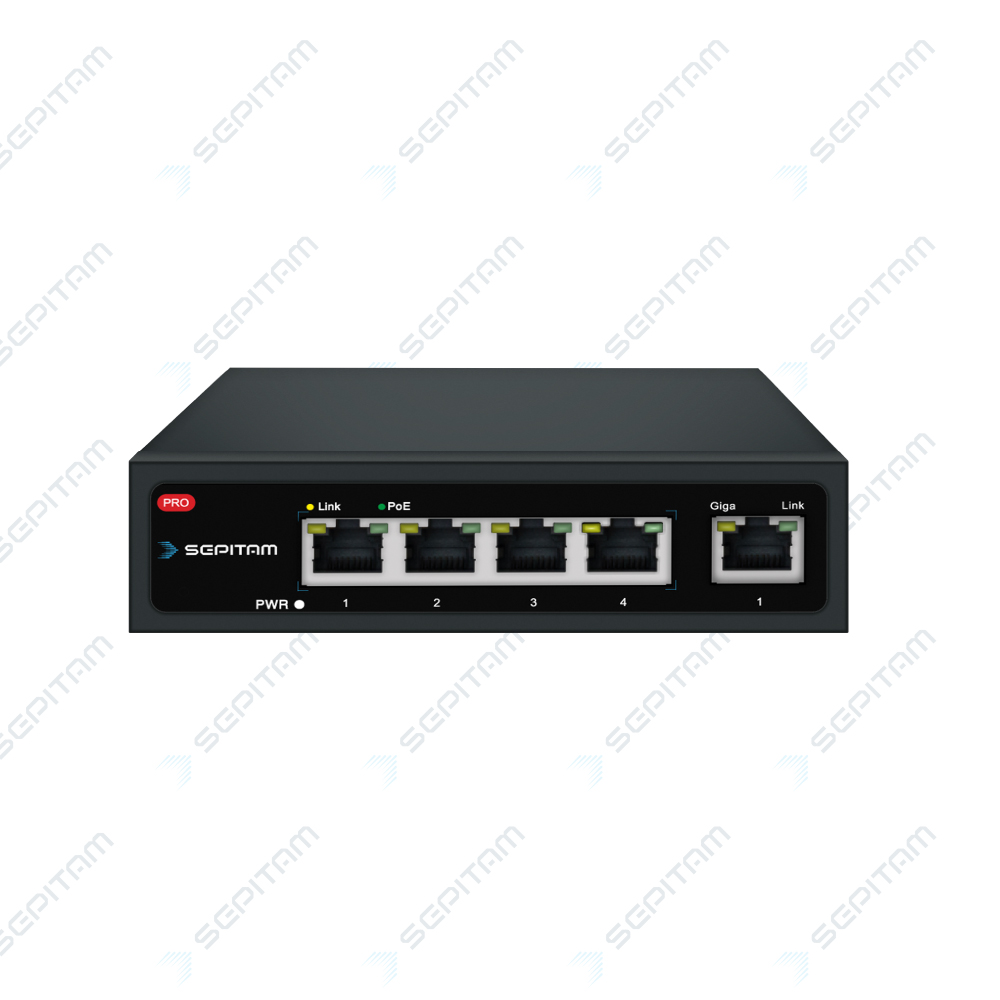

Sepitam-PS104E-EL

Enterprise Unmanaged Switch With 4*1G PoE + 1*1G RJ45 Ports

PartNumber: Sepitam-PS104E-EL
PartNumber: Sepitam-PS104E-EL
Featured Specifications More
  • Product : Sepitam-PS104E-EL

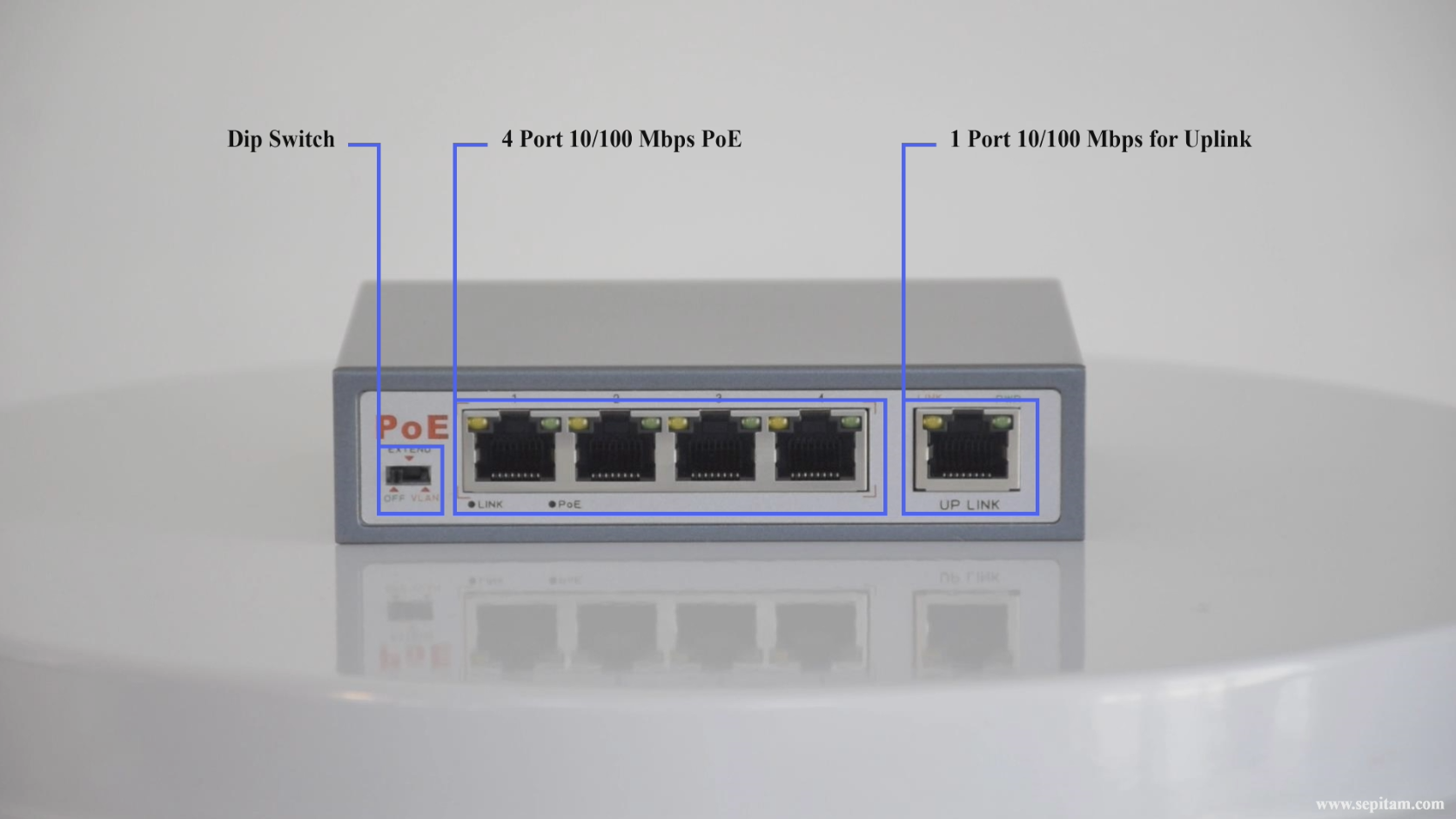

  • Downlink Ports : 4x10/100Base-T PoE
  • Uplink Ports : 1x10/100Base-T RJ45
  • Mounting type : Wall mount
  • Warranty Period : 36Months
Description

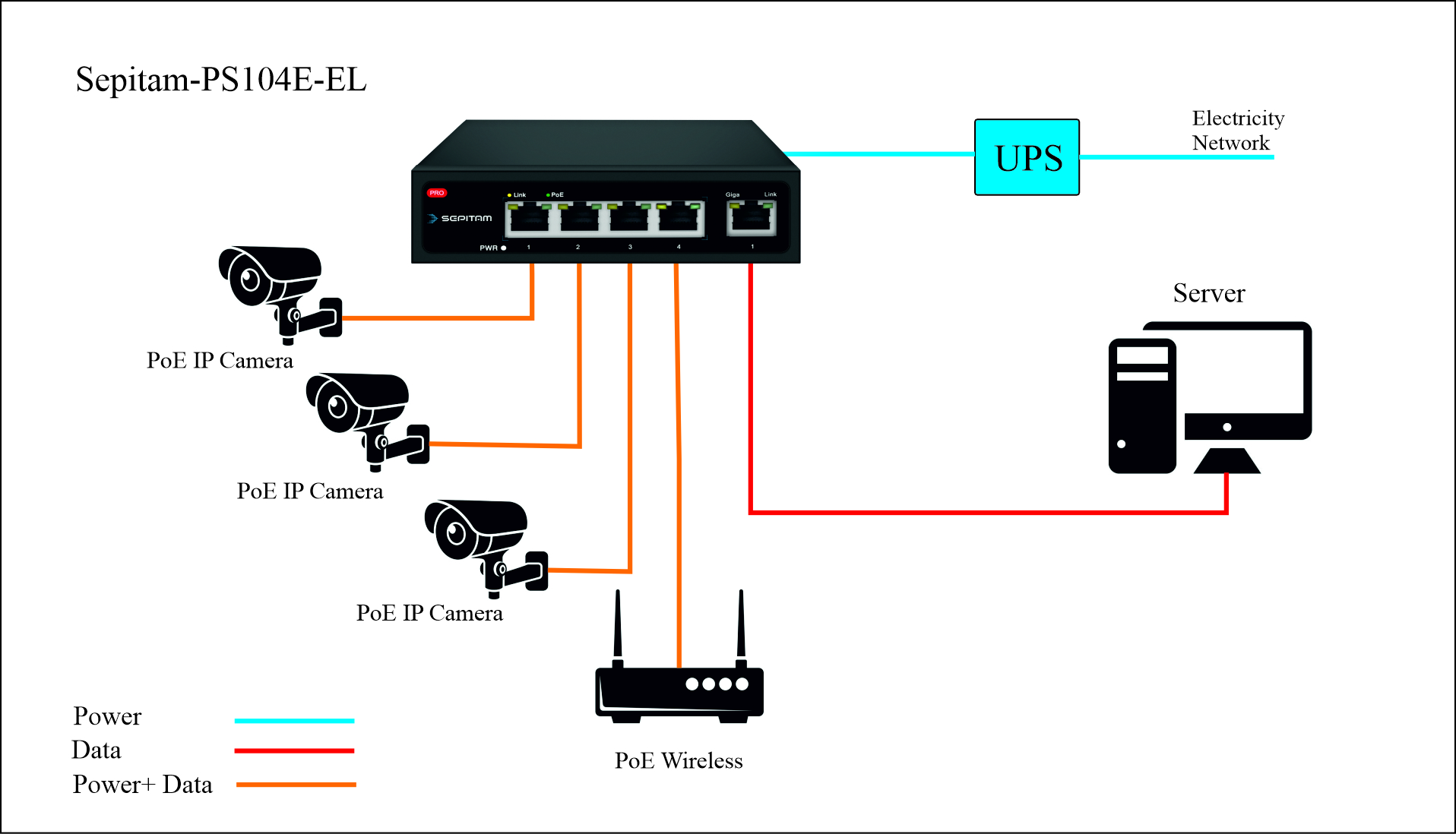

This equipment can prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. On five Fast Ethernet ports it prepared any 10/100 Mbps link and the rest of four ports can supply industry-standard IEEE 802.3af power for every POE standard devices. Regards to using advanced auto-sensing algorithm the Sepitam-PS104E-EL gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this PoE Switch Sepitam-PS104E-EL can recognize automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink

  • product vendor icon image Seller:
    سپیتام
?Need Help
.Just let us know and we will guide you

Similar products

Users rate: Enterprise Unmanaged Switch With 4*1G PoE + 1*1G RJ45 Ports
0
From 5
Excellent
0 (0%)
Good
0 (0%)
middle
0 (0%)
Not OK
0 (0%)
Poor
0 (0%)
  • Expert review
  • Specifications
  • User comments
 Enterprise Unmanaged Switch With 4*1G PoE + 1*1G RJ45 Ports
Enterprise Unmanaged Switch With 4*1G PoE + 1*1G RJ45 Ports
Product Sepitam-PS104E-EL Operating Temperature 0̊C ~ +55 ̊C
Relative humidity (without condensation) 90% ~ 5% Downlink Ports 4x10/100Base-T PoE
Uplink Ports 1x10/100Base-T RJ45 Mounting type Wall mount
PoE Enabled Ports 4x10/100Base-T PoE Dimensions (WxHxD) 118x25x89mm
Weight 350gr Switching Fabric 1.2Gbps
MAC 1K Buffer Memory 448Kb
Communication Standards IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
Power Budget 65W
Input Voltage 48VDC, 2.5A MTBF 100,000Hours
Management Warranty Period 36Months
DIP Switch Configuration OFF Mode: 100m Distance @100Mbps
Extend Mode: 250m Distance @10Mbps
Vlan Mode: : Enable VLAN for all ports
Design / Protection class Metal Housing/ IP30
Color Grey
Video
PS104E-EL
PS104E-EL
