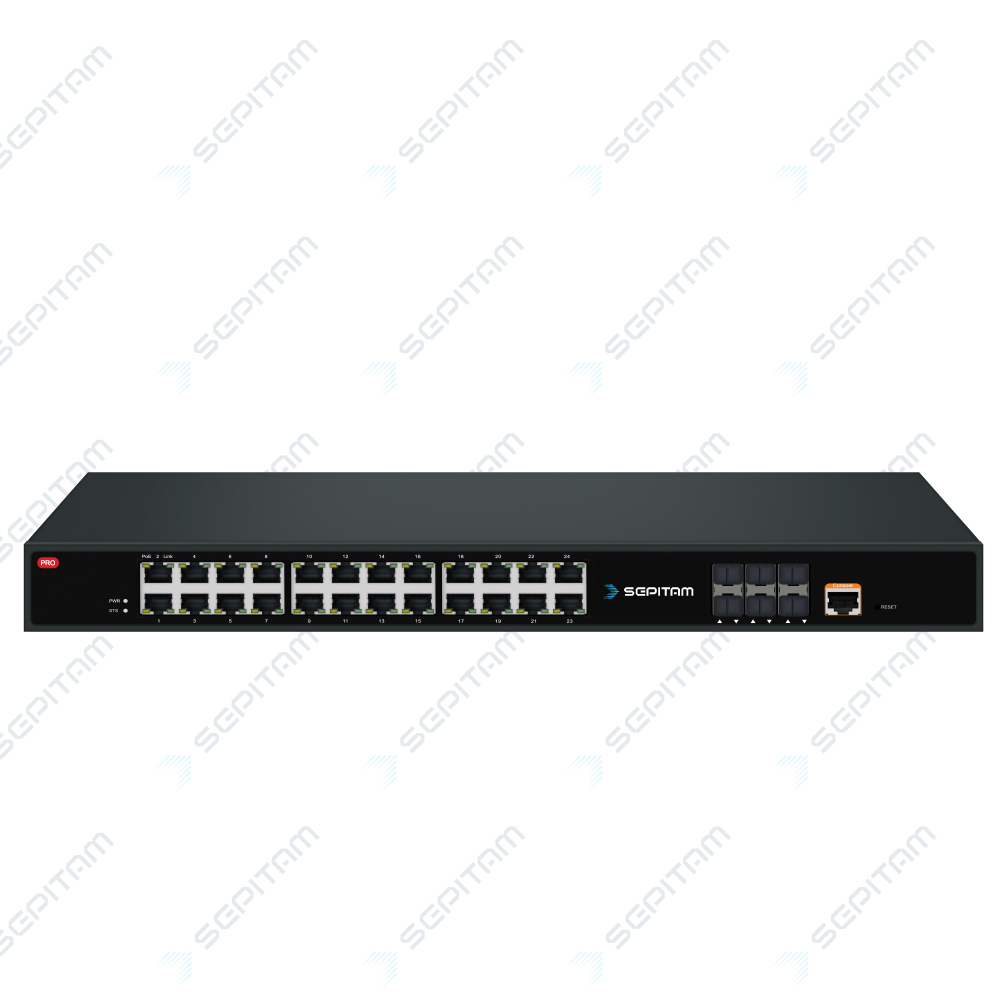

Enterprise Managed Switch With 20*1G PoE + 2*1G SFP & 4*1G SFP/RJ45 Combo Ports

PartNumber: Sepitam-PS620G-QCDFM
PartNumber: Sepitam-PS620G-QCDFM
Featured Specifications بیشتر
  • Product : Sepitam-PS620G-QCDFM
  • Downlink Ports : 20x10/100/1000Base-T PoE
  • Uplink Ports : 4x1000M TP/SFP Combo Port + 2x100/1000Base-X uplink SFP
  • Management : Managed
  • Warranty Period : 36Month
Description

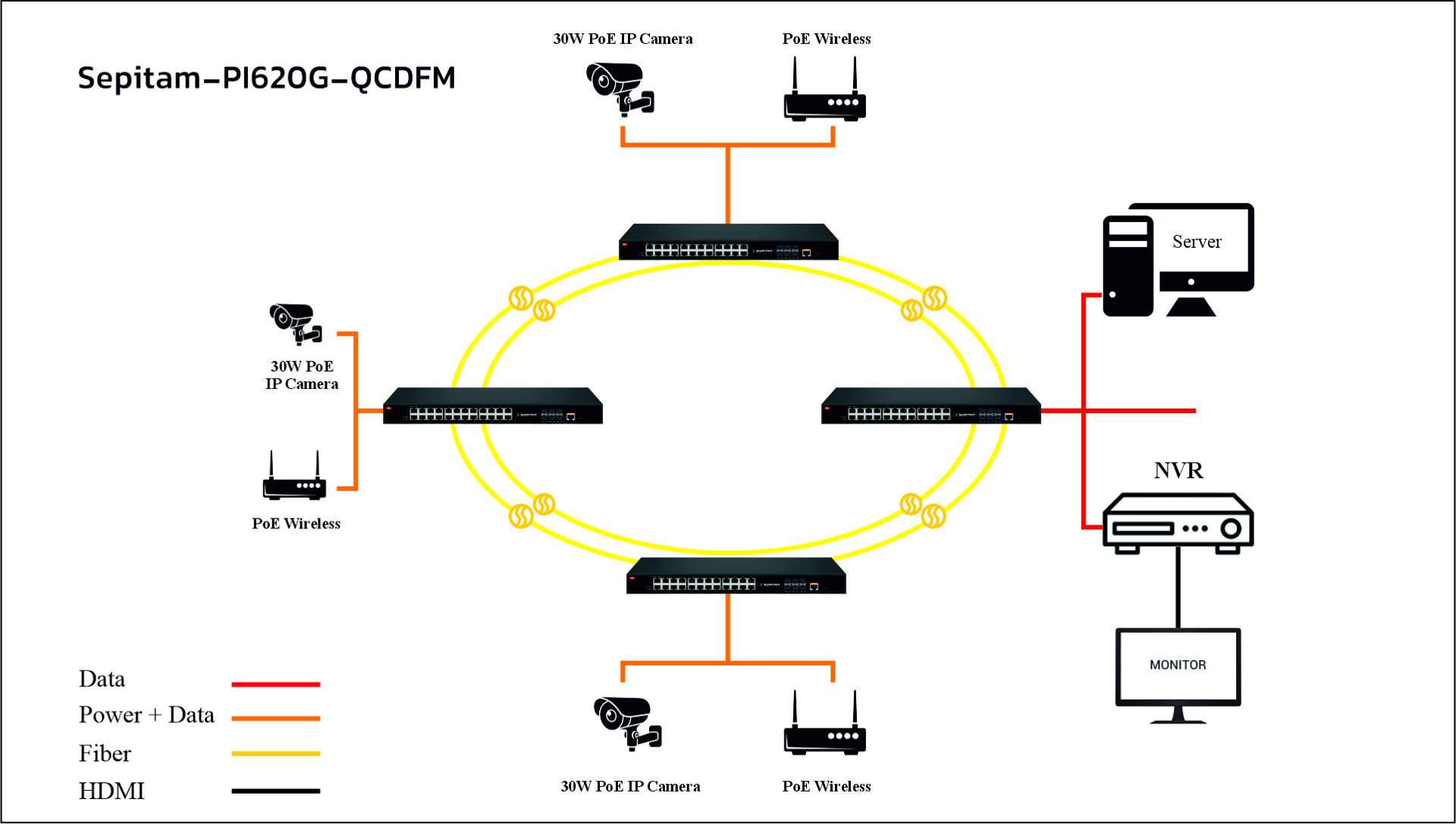

Sepitam-PS620G-QCDFM is a gigabit L2+ managed PoE fiber switch. It has 2*100/1000 SFP ports +4*1000M combo port and 20*10/100/1000Base-T RJ45 ports. Port 1-24 can support IEEE 802.3af/at standard PoE power supply, single port PoE power reaches 30W, and the maximum PoE output power is 400W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, webcam, VoIP phone, building visual access control intercom through network cable, to meet the network environment that needs high-density PoE power supply, suitable for hotels, campuses, parks, supermarkets, scenic spots, Factory quarters and SMB small and medium-sized enterprises form a cost-effective network.



Similar products

Users rate: Enterprise Managed Switch With 20*1G PoE + 2*1G SFP & 4*1G SFP/RJ45 Combo Ports
0
From 5
Excellent
0 (0%)
Good
0 (0%)
middle
0 (0%)
Not OK
0 (0%)
Poor
0 (0%)
  • Expert review
  • Specifications
  • User comments
Enterprise Managed Switch With 20*1G PoE + 2*1G SFP & 4*1G SFP/RJ45 Combo Ports
Enterprise Managed Switch With 20*1G PoE + 2*1G SFP & 4*1G SFP/RJ45 Combo Ports
Product Sepitam-PS620G-QCDFM Dimensions (WxHxD) 440x290x44.5mm
Weight 5.5kg Operating Temperature 20̊C ~ +55 ̊C-
Downlink Ports 20x10/100/1000Base-T PoE Relative humidity (without condensation) 90% ~ 5%
Uplink Ports 4x1000M TP/SFP Combo Port + 2x100/1000Base-X uplink SFP PoE Enabled Ports 20x10/100/1000Base-T PoE
Switching Fabric 256Gbps (Non-blocking), 256Gbps (Non-blocking) Forwarding Rate 26.78Mpps
MAC 8K Buffer Memory 6M
Communication Standards IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3x
Management Managed
Configuration Method VLAN, DHCP, IGMP, STP/RSTP, QoS, Syslog, PING, SSH, TELNET, SNMP, CLI, WEB, ERPS Software coverage
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter.20>ms G.8032 ERPS Ring
Fast Ring
Design / Protection class Lightning protection: 4KV 8/20us; Protection level: IP30 Color Black
Warranty Period 36Month Redundancy function
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
BPDU Filter.20>ms G.8032 ERPS Ring
PoE Standards IEEE802.3 af, IEEE802.3 at Power Budget 400W (AC100-160V)
Input Voltage Built-in power supply, AC 100~160V 50-60Hz 4.1A Mounting type Rack mount
