Sepitam-PS104E-E

10/100Mbps 4Port Unmanaged Indoor/Outdoor PoE switch with 1xFast Ethernet Uplink ( Model: Sepitam-PS104E-E )

Part Number: Sepitam-PS104E-E
Part Number: Sepitam-PS104E-E
Featured Specifications بیشتر
  • Downlink Ports : 4x10/100Base-T PoE
  • Uplink Ports : 1x10/100Base-T RJ45
  • Management : Unmanaged
  • product vendor icon image Seller:
    فروشگاه اینترنتی سپیتام

محصولات مشابه

امتیاز کاربران به: 10/100Mbps 4Port Unmanaged Indoor/Outdoor PoE switch with 1xFast Ethernet Uplink ( Model: Sepitam-PS104E-E )
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی
10/100Mbps 4Port Unmanaged Indoor/Outdoor PoE switch with 1xFast Ethernet Uplink ( Model: Sepitam-PS104E-E )

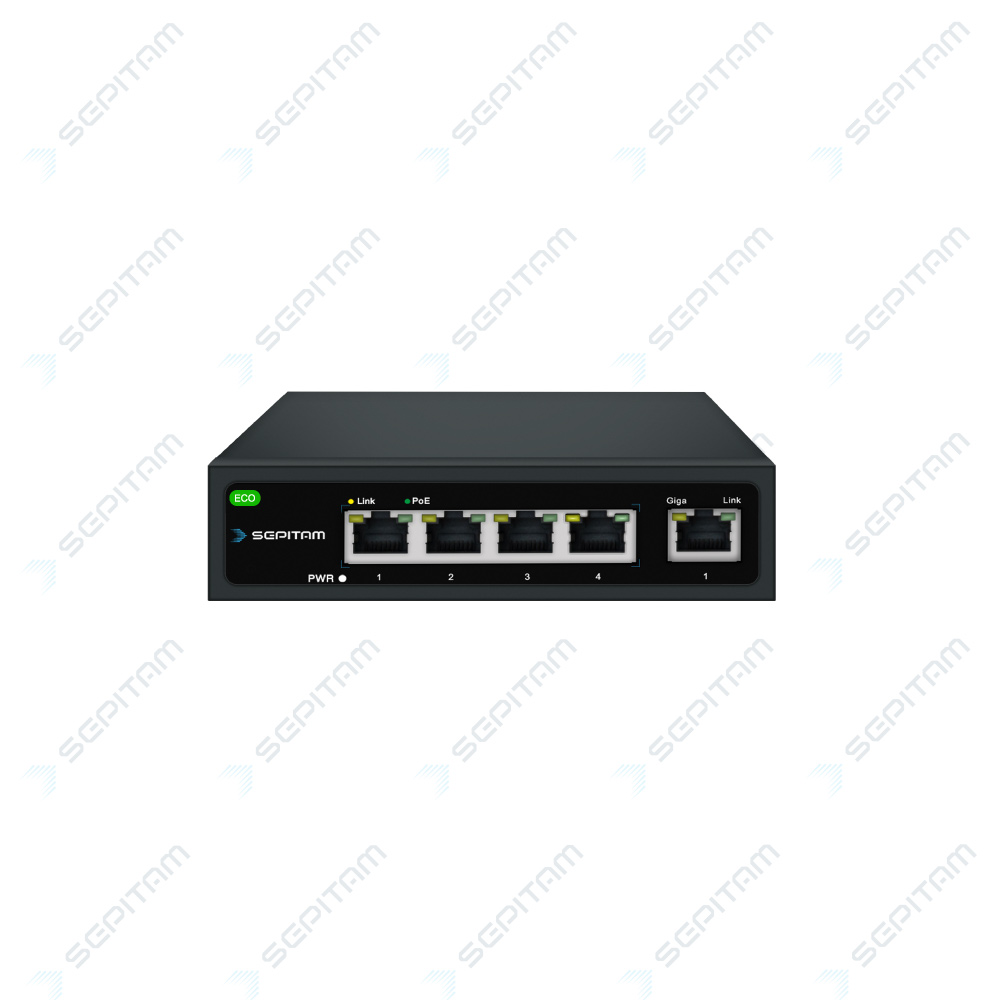

این محصول یک POE سوئیچ نیمه‌صنعتی ۴ پورت 10/100Mbps نیمه‌صنعتی غیرمدیریتی است که دارای یک پورت آپلینک شبکه با سرعت 10/100Mbps بوده که علاوه بر شبکه کردن سیستم‌های موجود در یک شبکه کامپیوتری، توان موردنیاز تجهیزات POE را نیز تأمین می‌کند. همچنین تمامی استانداردهای لازم جهت کارکردصحیح در شبکه را دارا می‌باشد. این دستگاه راهکاری مقرون‌به‌صرفه برای گسترش شبکه کابلی در سازمان‌ها، ادارات ومنازل به شمار می‌رود. در پنل جلویی این محصول ۴ پورت شبکه Rj45 با سرعت10/100Mbps تعبیه شده و دارای ال‌ای‌دی نشانگر وضعیت کارایی دستگاه می‌باشد و در پنل پشتی دستگاه نیز درگاه برق ورودی قرار گرفته است. این دستگاه نیازبه برنامه‌ریزی نداشته و به‌صورت Plug and Play نصب می‌شود.

This equipment can prepare a field that power and data can feed from a single point, using Power over Ethernet (PoE) over a single cable. On five Fast Ethernet ports it prepared any 10/100 Mbps link and the rest of four ports can supply industry-standard IEEE 802.3af power for every POE standard devices.
Regards to using advanced auto-sensing algorithm the Sepitam-PS104E-E gives power only to IEEE802.3af front-end devices, so don't worry about connecting PoE or non-PoE devices to this feeder. Additionally, this good gives up the power when PoE devices are disconnected. Intelligently, this PoE Switch Sepitam-PS104E-E can recognize automatically PoE demands of devices, speed, duplex, and cable type using Auto Uplink™.

10/100Mbps 4Port Unmanaged Indoor/Outdoor PoE switch with 1xFast Ethernet Uplink ( Model: Sepitam-PS104E-E )
10/100Mbps 4Port Unmanaged Indoor/Outdoor PoE switch with 1xFast Ethernet Uplink ( Model: Sepitam-PS104E-E )
Product Sepitam-PS104E-E PoE Enabled Ports 4x10/100Base-T PoE
PoE Standards IEEE802.3 af Switching Fabric 1.6Gbps(Non-blocking)
MAC 1K Buffer Memory 96Kb
Communication Standards IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.1af DTE Power via MDI IEEE 802.3af Power Budget 65W
Input Voltage 48VDC, 2.5A MTBF 100,000Hours
Design / Protection class Metal Housing/ IP30 Mounting type Wall mount
Color Grey Dimensions (WxHxD) 118x89x28mm
Weight 350g Operating Temperature 0̊C ~ +55 ̊C
Relative humidity (without condensation) 90% ~ 5% Warranty Period 36Month
Downlink Ports 4x10/100Base-T PoE Uplink Ports 1x10/100Base-T RJ45
Management Unmanaged
