Sepitam-PS422G-DCDFM

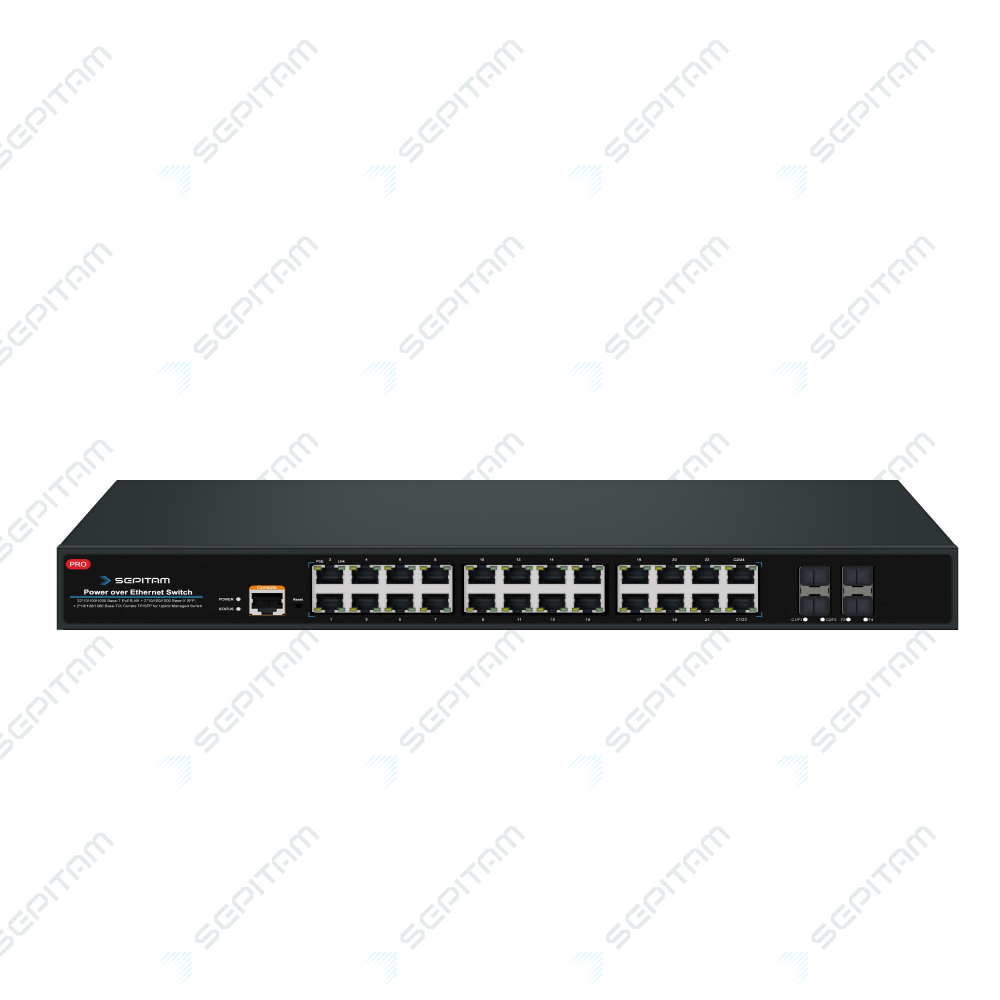

Full Gigabit 22Port Managed Indoor/Outdoor PoE switch with 2xGigabit SFP + 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS422G-DCDFM )

Part Number: Sepitam-PS422G-DCDFM
Part Number: Sepitam-PS422G-DCDFM
Featured Specifications بیشتر
  • Downlink Ports : 22x10/100/1000Base-T PoE
  • Uplink Ports : 2x1000M TP/SFP Combo Port + 2x100/1000Base-X uplink SFP
  • Management : Dip Switch
  • product vendor icon image Seller:
    فروشگاه اینترنتی سپیتام

محصولات مشابه

امتیاز کاربران به: Full Gigabit 22Port Managed Indoor/Outdoor PoE switch with 2xGigabit SFP + 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS422G-DCDFM )
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی
Full Gigabit 22Port Managed Indoor/Outdoor PoE switch with 2xGigabit SFP + 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS422G-DCDFM )

این محصول یک POE سوئیچ ۲۴ پورت نیمه‌صنعتی مدیریتی با سرعت 10/100/1000Mbps بوده و همچنین دارای ۲ پورت SFP و ۲ پورت به صورت Combo/TP SFP را داراست. علاوه بر ارتباط بین سیستم‌ها و ایجاد یک شبکه واحد، توان موردنیاز دستگاه‌های مبتنی بر استاندارد POE را نیز تأمین می‌کند. این دستگاه وظیفهٔ مدیریت هوشمند شبکه از طریق پروتکل‌های استاندارد در لایه ۲ را بر عهده دارد. با استفاده از قابلیت‌های مدیریتی این سوئیچ می‌توان کنترل بیشتری بر روی داده‌های شبکه داشت و صرفاً به داده‌های مجازی که از قبل تعریف شده باشند اجازه عبور دهد. این دستگاه راهکاری مقرون‌به‌صرفه برای گسترش شبکه کابلی در سازمان‌ها، ادارات و مراکز صنعتی به شمار می‌رود.

Sepitam-PS422G-DCDFM is a Layer 2+ managed Gigabit PoE Switch that features intelligent PoEfunctions to improve the availability of critical business applications. It provides IPv6/IPv4 managementand built-in L2+ Gigabit Switching engine along with 22 10/100/1000 Mbps BASE-T ports featuring 30-watt 802.3at PoE+, 2Gigabit TP/SFP Combo and 2 Gigabit SFP slots. With a total power budget up to400W for different kinds of PoE applications, can provides quick, safe and cost-effective Power overEthernet network solutions to security IP surveillance for small businesses and enterprises.

The Sepitam-PS422G-DCDFM is programmed for advanced switch management functions such as802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), loop and BPDU guard,IGMP snooping, and MLD snooping. Also, the Link Layer Discovery Protocol (LLDP) is the Layer 2 protocol included to help discover basic information about neighboring devices on the local broadcast domain.

Full Gigabit 22Port Managed Indoor/Outdoor PoE switch with 2xGigabit SFP + 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS422G-DCDFM )
Full Gigabit 22Port Managed Indoor/Outdoor PoE switch with 2xGigabit SFP + 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS422G-DCDFM )
Product Sepitam-PS422G-DCDFM PoE Enabled Ports 22x10/100/1000Base-T PoE
PoE Standards IEEE802.3 af Switching Fabric 52Gbps (Non-blocking)
Forwarding Rate 38.69Mpps@64byts MAC 8K
Buffer Memory 4Mb Communication Standards IEEE802.3:CSMA/CD
IEEE802.3i:10Base-T
IEEE802.3u:100Base-T
IEEE802.3ab:1000Base-T
IEEE802.3z:1000Base-LX
Power Budget 400W Input Voltage AC 100~240V 50-60Hz 0.56A
MTBF 50,000Hours Redundancy function 802.1D Spanning Tree Protocol (STP)
802.1w Rapid Spanning Tree Protocol (RSTP)
802.1s Multiple Spanning Tree Protocol (MSTP)
Loop Guard
Root Guard
TC-BPDU Guard
BPDU Guard
BPDU Filter.20>ms G.8032 ERPS Ring
Fast Ring
Design / Protection class Metal Housing/ IP30 Mounting type Rack mount
Color Black Dimensions (WxHxD) 440x290x44.5mm
Weight 4500g Operating Temperature 10̊C ~ 45 ̊C-
Relative humidity (without condensation) 90% ~ 10% Warranty Period 36Month

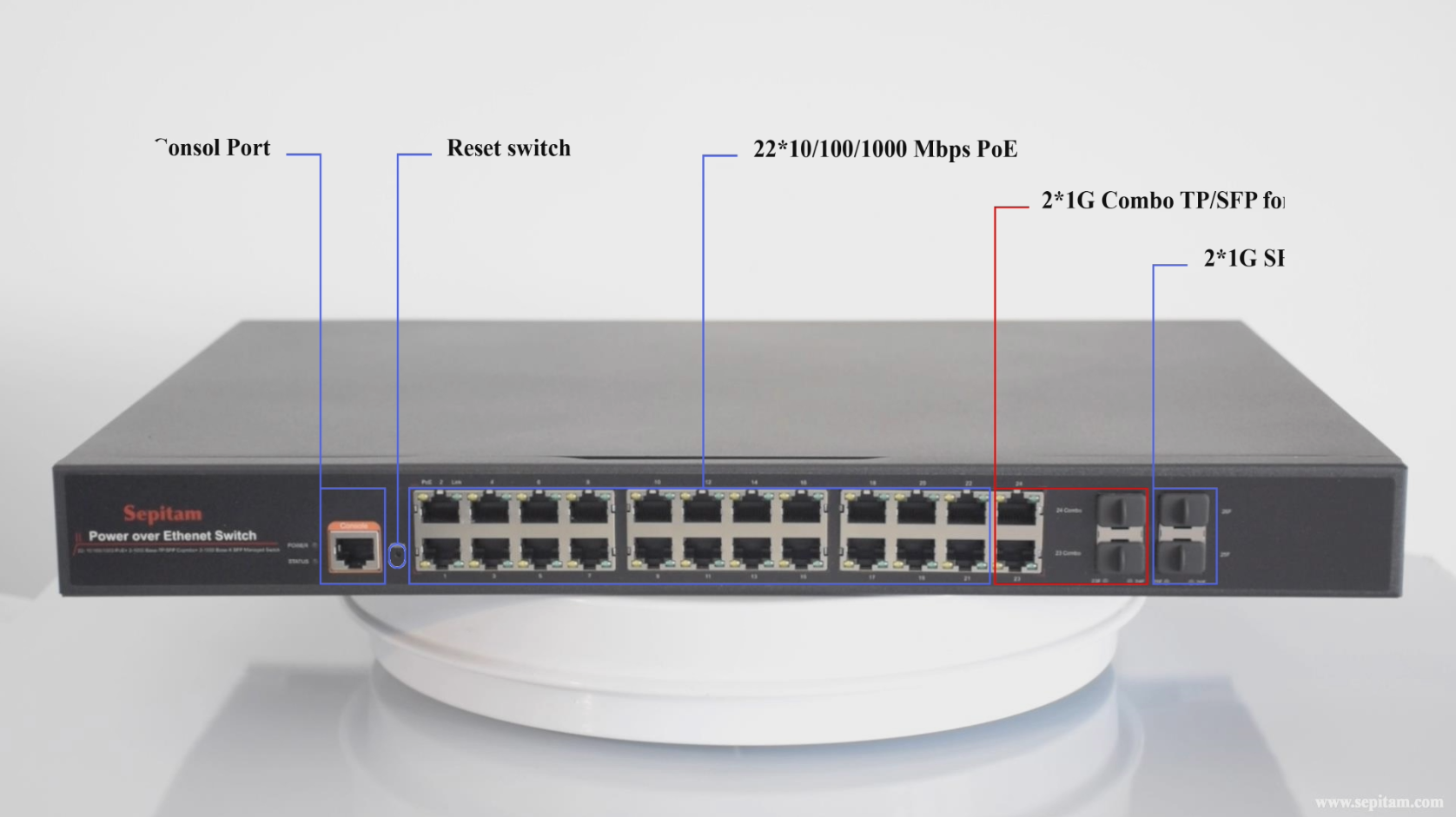

Downlink Ports 22x10/100/1000Base-T PoE Uplink Ports 2x1000M TP/SFP Combo Port + 2x100/1000Base-X uplink SFP
Management Dip Switch Configuration Method WEB
Software coverage product: 280 | spec: 1069
