Sepitam-PS224E-DC

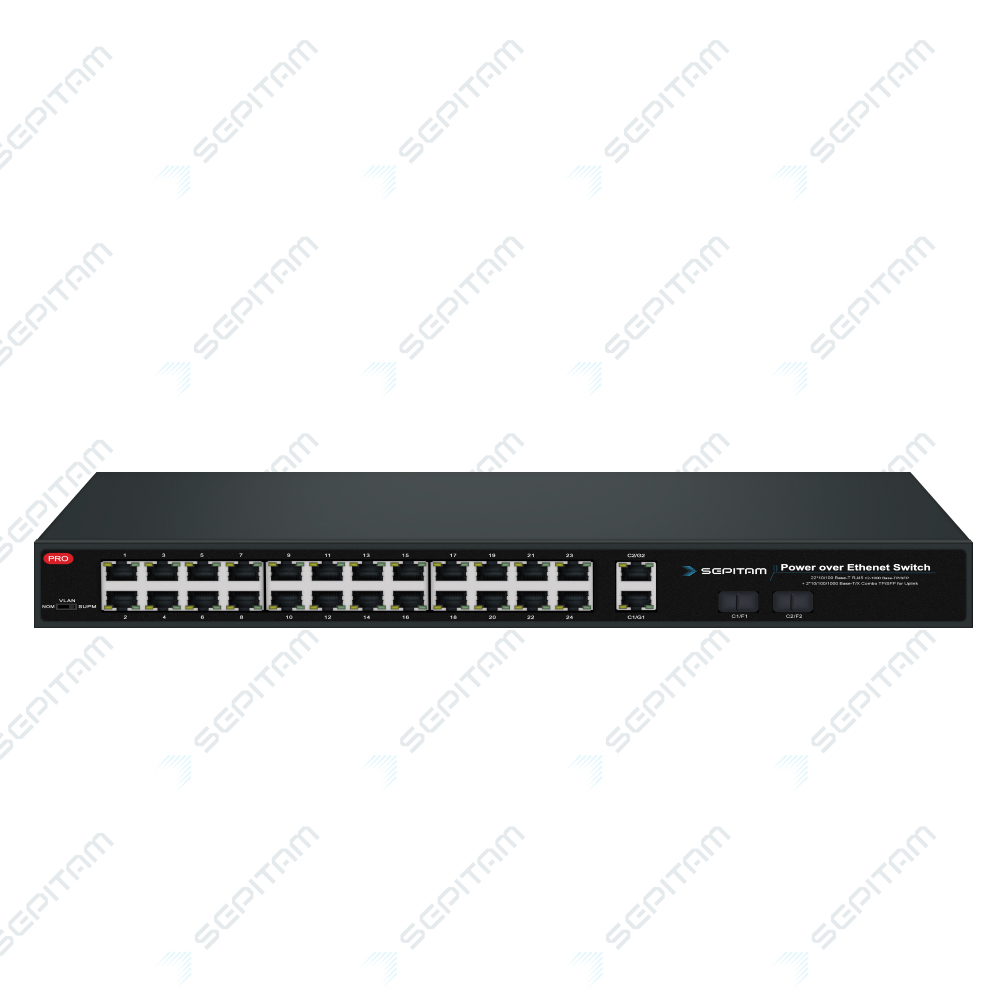

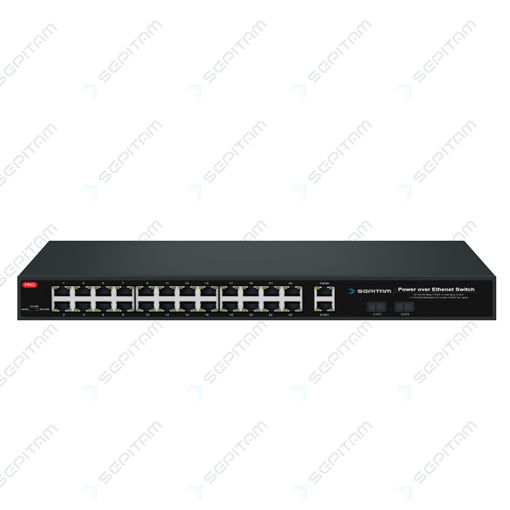

10/100Mbps 24Port Unmanaged Indoor/Outdoor PoE switch with 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS224E-DC )

Part Number: Sepitam-PS224E-DC
Part Number: Sepitam-PS224E-DC
Featured Specifications بیشتر
  • Downlink Ports : 24x10/100Base-T PoE
  • Uplink Ports : 2x1000M TP/SFP Combo Port
  • Management : Dip Switch
  • product vendor icon image Seller:
    فروشگاه اینترنتی سپیتام

محصولات مشابه

امتیاز کاربران به: 10/100Mbps 24Port Unmanaged Indoor/Outdoor PoE switch with 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS224E-DC )
0
از 5
عالی
0 (0%)
خوب
0 (0%)
متوسط
0 (0%)
نامناسب
0 (0%)
ضعیف
0 (0%)
  • بررسی تخصصی
  • مشخصات
  • نظرات کاربران
بررسی تخصصی
10/100Mbps 24Port Unmanaged Indoor/Outdoor PoE switch with 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS224E-DC )

این محصول یک POE سوئیچ نیمه‌صنعتی ۲۴ پورت10/100Mbps است  که دارای ۲ پورت آپلینک به‌صورت Combo/TP SFP با پهنای باند  10/100/1000Mbps بوده و این محصول با پشتیبانی از استاندارد  IEEE802.3afتا حداکثر ۱۵٫۵ وات را به‌ازای هر پورت پشتیبانی می‌کند. این محصول  با استفاده از الگوریتم‌های پیشرفته به ما تضمین می‌دهد که  توان را  به‌صورت کاملاً هوشمند تنها به دستگاه‌هایی که از استاندارد POE پشتیبانی می‌کنند مانند انواع دوربین‌های  Out door تحویل دهد.

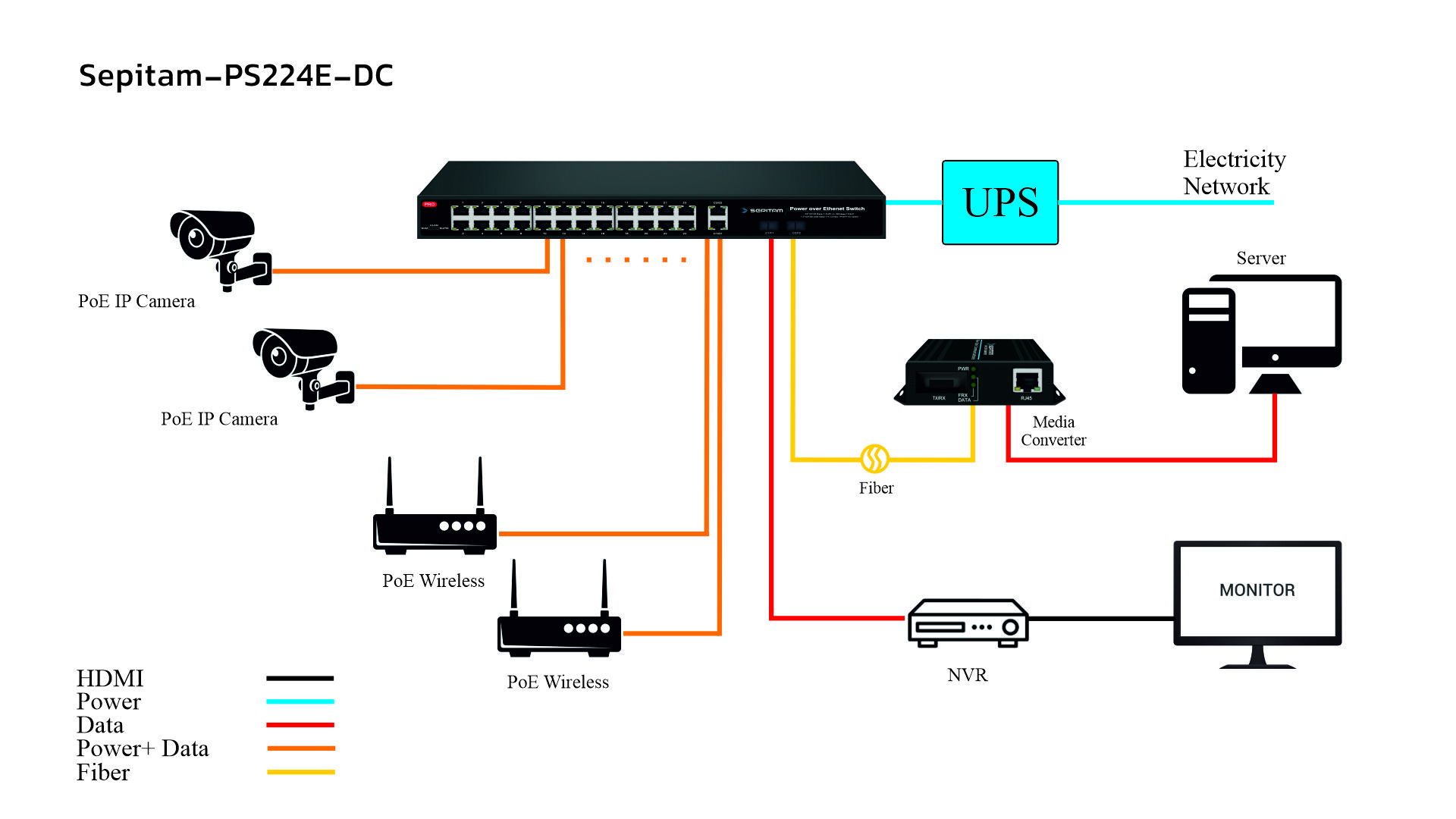

Sepitam-PS224E-DC is an ideal Plug and Play, Power over Ethernet solution which provides quick installation and unmanaged VLAN mode to improve work efficiency It is equipped with 24*10/100 BASE-Tports 30W PoE and 2 Gigabit combo ports with inner power system. With a total PoE+ power budget of400 watts and non-blocking data switching performance, the Sepitam-PS224E-DC can fulfill the demandof sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

10/100Mbps 24Port Unmanaged Indoor/Outdoor PoE switch with 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS224E-DC )
10/100Mbps 24Port Unmanaged Indoor/Outdoor PoE switch with 2xGigabit Combo(TP/SFP) Uplinks ( Model: Sepitam-PS224E-DC )
Product Sepitam-PS224E-DC PoE Enabled Ports 24x10/100Base-T PoE
PoE Standards IEEE802.3 af Switching Fabric 8.8Gbps (Non-blocking)
Forwarding Rate 6.55Mpps@64byts MAC 8K
Buffer Memory 4.1M Communication Standards IEEE802.3:CSMA/CD
IEEE802.3i:10Base-T
IEEE802.3u:100Base-T
IEEE802.3ab:1000Base-T
IEEE802.3z:1000Base-LX
Power Budget 400W Input Voltage AC 100~240V 50-60Hz 0.56A
MTBF 50,000Hours DIP Switch Configuration D(Standard) Mode: 100m Distance@100Mbps
C(CCTV) Mode: 250m Distance@10Mbps
V(VLAN) Mode: 100m Distance @100Mbps1-16 ports are isolated from each other
Design / Protection class Metal Housing/ IP30 Mounting type Rack mount
Color Black Dimensions (WxHxD) 440x290x45mm
Weight 3800gr Operating Temperature 10̊C ~ 45 ̊C-
Relative humidity (without condensation) 90% ~ 10% Warranty Period 36Month

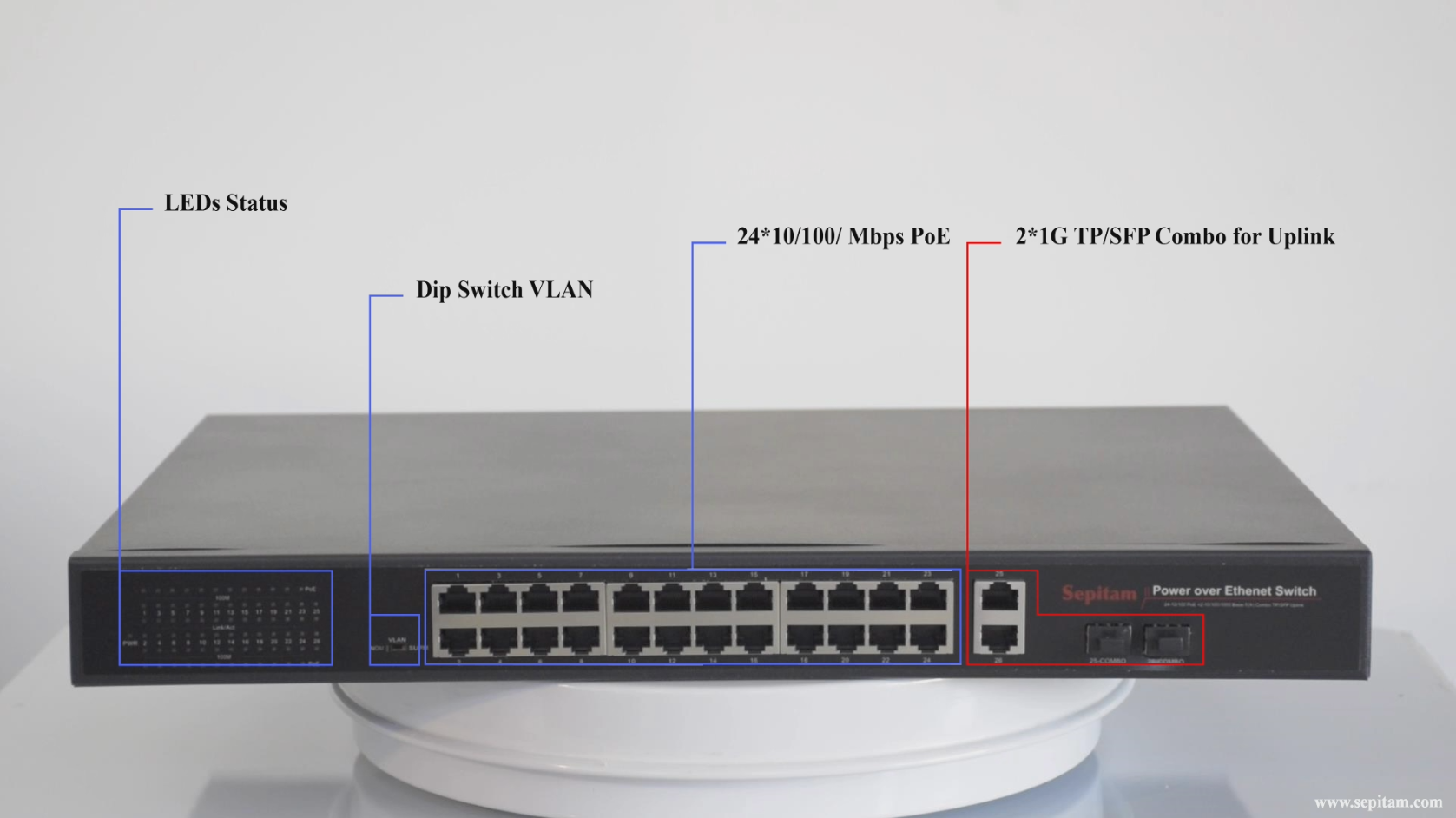

Downlink Ports 24x10/100Base-T PoE Uplink Ports 2x1000M TP/SFP Combo Port
Management Dip Switch
