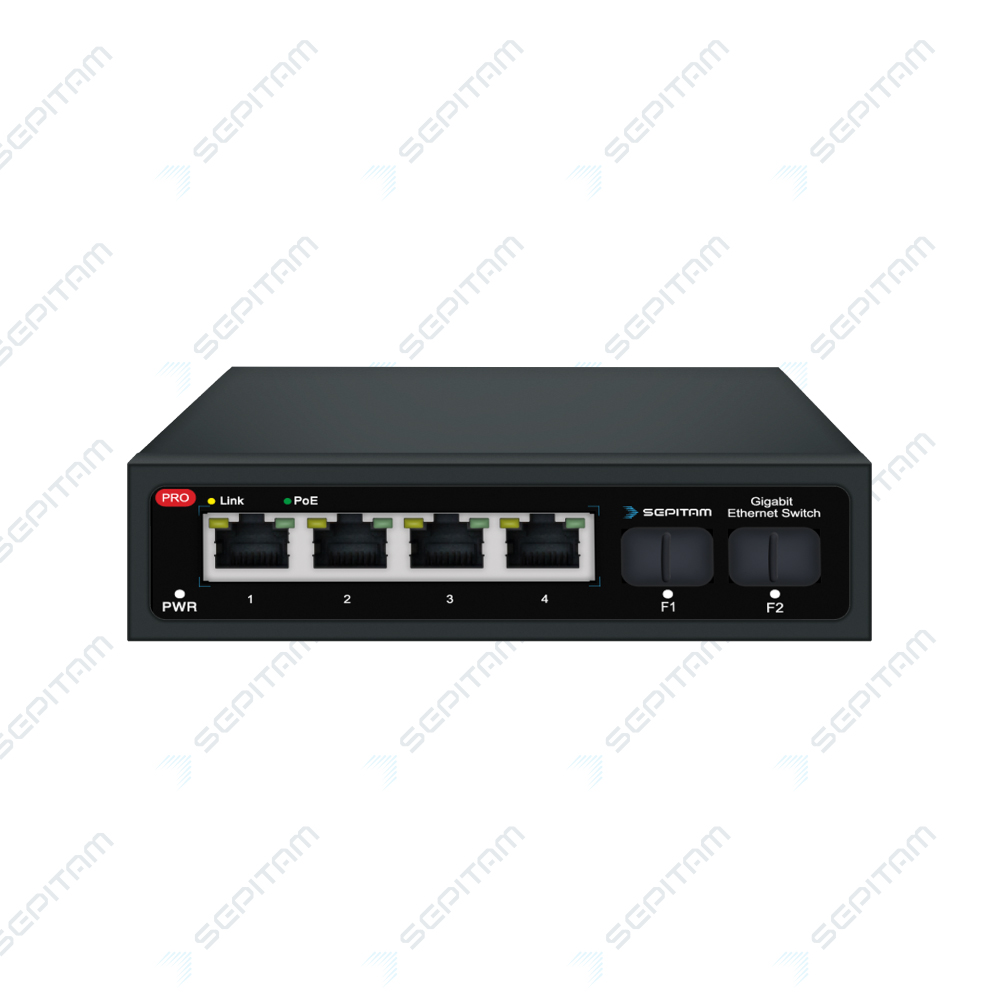

Enterprise Unmanaged Switch With 4*1G PoE + 2*1G SFP Ports

PartNumber: Sepitam-PS204G-DF
PartNumber: Sepitam-PS204G-DF
Featured Specifications بیشتر
  • Product : Sepitam-PS204G-DF
  • Uplink Ports : 10/100/1000M 2 PoE ports
  • Warranty Period : 36Month
Description

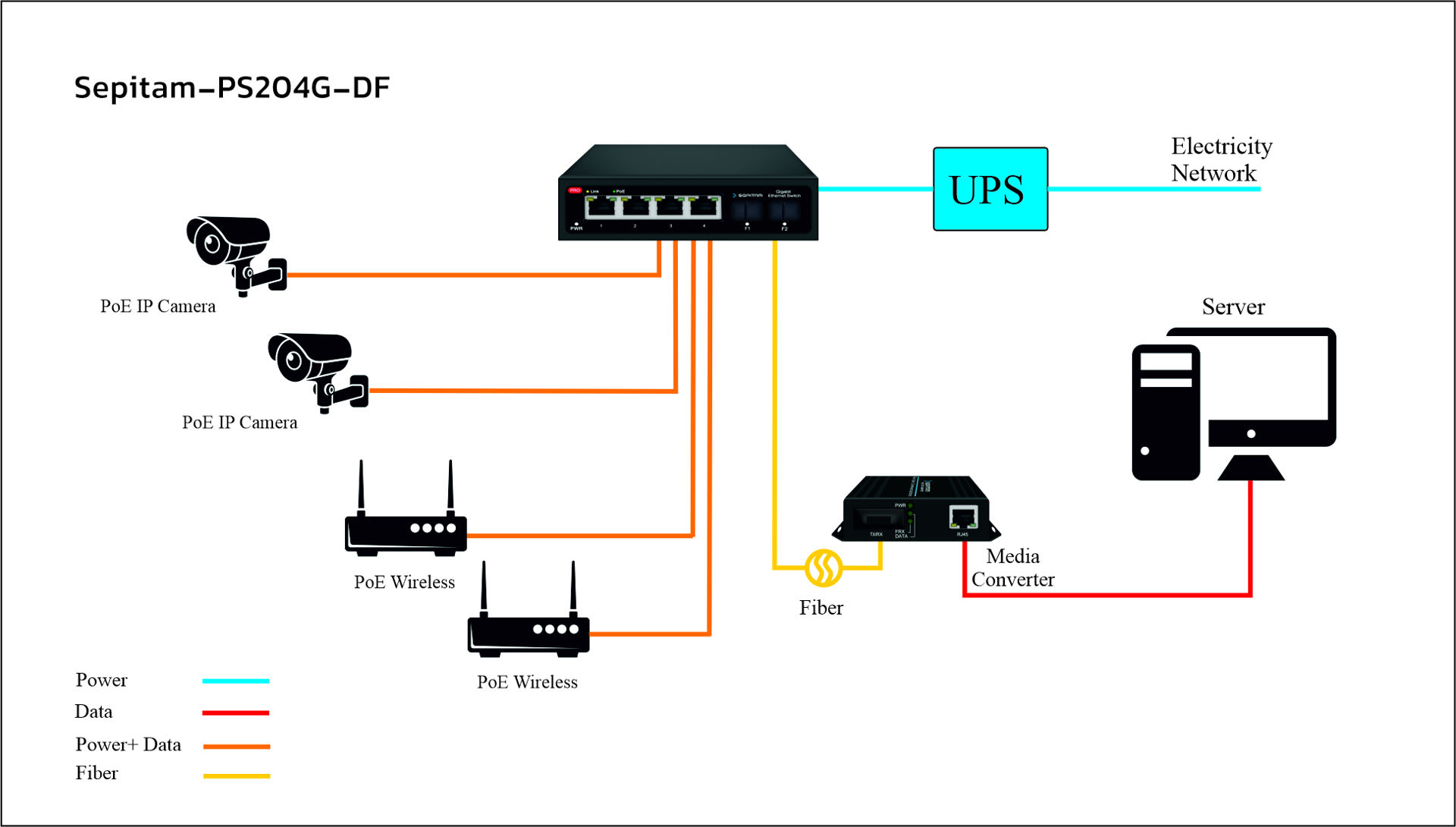

The Sepitam-PS204G-DF is a full gigabit Enterprise PoE fiber switch. It has 4*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber slot ports. Port 1-4 can support IEEE 802.3af/at PoE standard, single-port PoE power up to 30W, and the maximum PoE output power of the host is 60W (at-120W).  As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera through the network cable, and meet the network environment that needs high-density PoE power supply.  construction form a cost-effective, stable and reliable communication network.



  • product vendor icon image Seller:
    سپیتام
  •  Preparation time:
    Ready to send
?Need Help
.Just let us know and we will guide you

Similar products

Users rate: Enterprise Unmanaged Switch With 4*1G PoE + 2*1G SFP Ports
0
From 5
Excellent
0 (0%)
Good
0 (0%)
middle
0 (0%)
Not OK
0 (0%)
Poor
0 (0%)
  • Expert review
  • Specifications
  • User comments
بررسی تخصصی

ویژگی های کلیدی:



  • پورت PoE+ با توان خروجی PoE تا 30 وات: این سوئیچ برای پشتیبانی از طیف وسیعی از دستگاه های PoE مانند نقاط دسترسی بی سیم، دوربین های IP، سنسورها و تجهیزات صنعتی ایده آل است. پشتیبانی از استانداردهای IEEE802.3af/at))
  •  پورت: SFP 1000Base-X این پورت ها اتصالات uplink پرسرعت و قابل اعتمادی را برای شبکه شما فراهم می کنند و امکان اتصال به شبکه های فیبر نوری را برای مسافت های طولانی و پهنای باند 1000ms فراهم می کنند.
  • عملکرد روان : ظرفیت سوئیچینگ Gb/s12 عملکردی روان و بدونتاخیر را تضمین می کند. این امر برای انتقال داده های حجیم و ترافیک سنگین شبکه ایده آل است.
  • سازگاری:  این سوئیچ با طیف وسیعی از تجهیزات شبکه از جمله دوربین های IP، روترها، فایروال ها و سرورها سازگار است.



جمع بندی:



سوئیچ Sepitam-PS204G-DF یک راه حل قدرتمند، انعطاف پذیر و مقرون به صرفه برای شبکه های سازمانی است که نیاز به اتصالات پرسرعت، پایدار و امن دارند. این سوئیچ با پشتیبانی از PoE+، پورت های SFP 1000Base-X، عملکرد قوی، قابلیت اطمینان بالا و سازگاری با طیف وسیعی از تجهیزات شبکه، انتخابی ایده آل برای طیف وسیعی از کاربردهای تخصصی و پیشرفته است.


Product Sepitam-PS204G-DF Dimensions (WxHxD) 119mm*100mm*35mm
Weight <0.5kg/<0.7kg Operating Temperature -20~+60°C
Uplink Ports 10/100/1000M 2 PoE ports PoE Enabled Ports PoE port1~port4 support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum
power: 30W/port;
Switching Fabric 12Gbps Forwarding Rate 8.93Mpps
MAC 4K Buffer Memory 2M
Design / Protection class Indoor/Outdoor
Lightning protection: 6KV 8/20us; Protection level: IP40
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV
IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m 1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022): Class A
IEC61000-6-2(Common Standard)
Color Black
Warranty Period 36Month PoE Standards IEEE802.3 af, IEEE802.3 at
Power Budget 120W/48VDC (IEEE802.3at) - 60W/48VDC (IEEE802.3af) MTBF 100000 hours
Input Voltage DC48-57V, Redundant dual power 5-bit terminals Mounting type Rack mount
